Seal - Inner Belt - Rear Door - LH - Remove And Replace: Remove

  1. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
  2. Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
  3. Remove the LH rear door inner belt seal from the LH rear door.

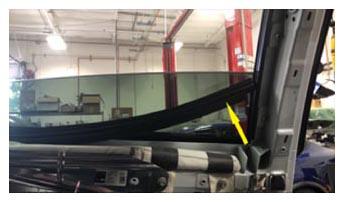

    G15392654Courtesy of TESLA, INC.

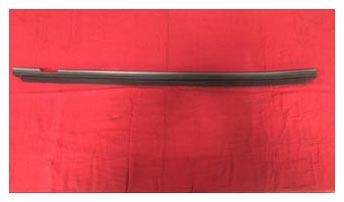

    G15392655Courtesy of TESLA, INC.
