Seal - Inner Belt - Rear Door - LH - Remove And Replace: Install

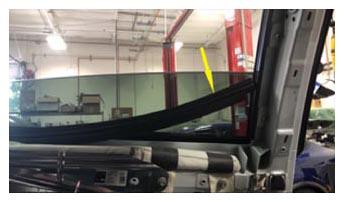

  1. Position the LH rear door inner belt seal into the LH rear door, and then install the seal into the door.
    G15392656Courtesy of TESLA, INC.
  2. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
  3. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
