Seal - Inner Belt - Front Door - LH - Remove And Replace: Remove
- Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace)
.

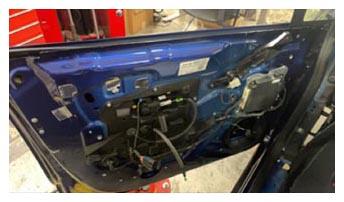

- Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace)
.

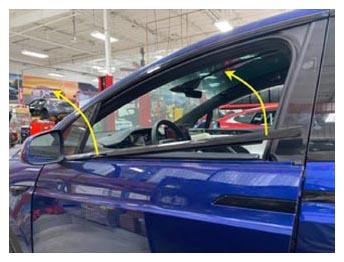

- Remove the LH front door outer belt molding.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

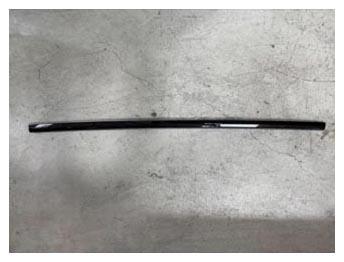

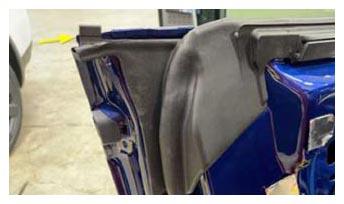

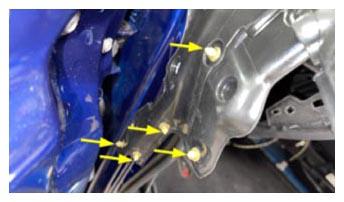

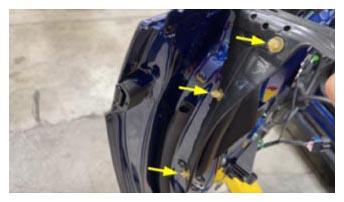

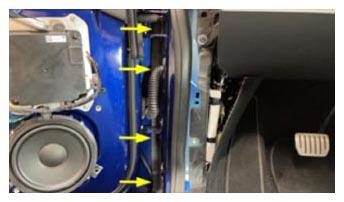

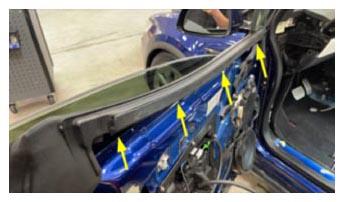

- Use a clip prytool to release the push clips (x8) that attach the LH front door inner belt seal to the LH front door assembly, pull up to release the tab, and then pull the RH side of the seal away from the door panel to remove the seal from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
