Home >> Tesla >> 2021 >> Model X Long Range Plus >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Accessories Control Systems >> Doors, Windows And Latches -- Model X >> Seals Body Enclosures >> Seal - Body - Side - Front - Primary - LH - Remove And Replace >> Remove

Seal - Body - Side - Front - Primary - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.

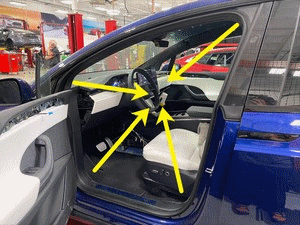

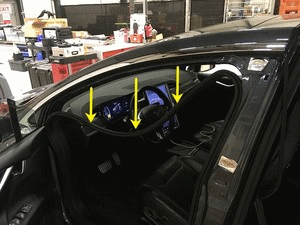

  2. Pull LH primary front side body seal away from the body, and then remove the seal from the vehicle.
    G00632555Courtesy of TESLA, INC.
    G00632556Courtesy of TESLA, INC.
