Striker - Liftgate - Remove And Replace: Install

  1. Position the liftgate striker into the vehicle, align the striker to the marked position, and then loosely install the bolts (x2) that attach the striker to the vehicle.
    G15391895Courtesy of TESLA, INC.
  2. Close the liftgate to check for gap/flush and that liftgate closes as expected.
    NOTE: Adjust the striker if necessary and open the trunk when done.

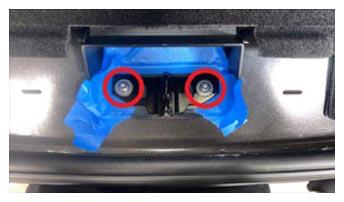

  3. Tighten the bolts (x2) that attach the striker to the vehicle.

    22 N.m (16.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T30 socket
    G15391896Courtesy of TESLA, INC.
  4. Remove the masking tape around the liftgate striker area.
  5. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  6. Install the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  7. Install the trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  8. Close the liftgate.
  9. Raise the LH front window and close the LH front door.
