Striker - Hood - Remove And Replace: Install

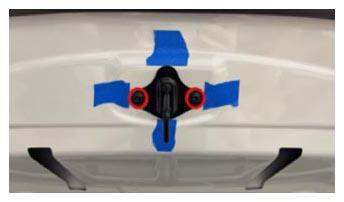

  1. Position the hood striker onto the hood, and then install the bolts (x2) that attach the striker to the hood.

    18 N.m (13.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T40 socket
    G15391890Courtesy of TESLA, INC.
  2. Remove the masking tape.
  3. Raise the front windows and close the LH front door.
