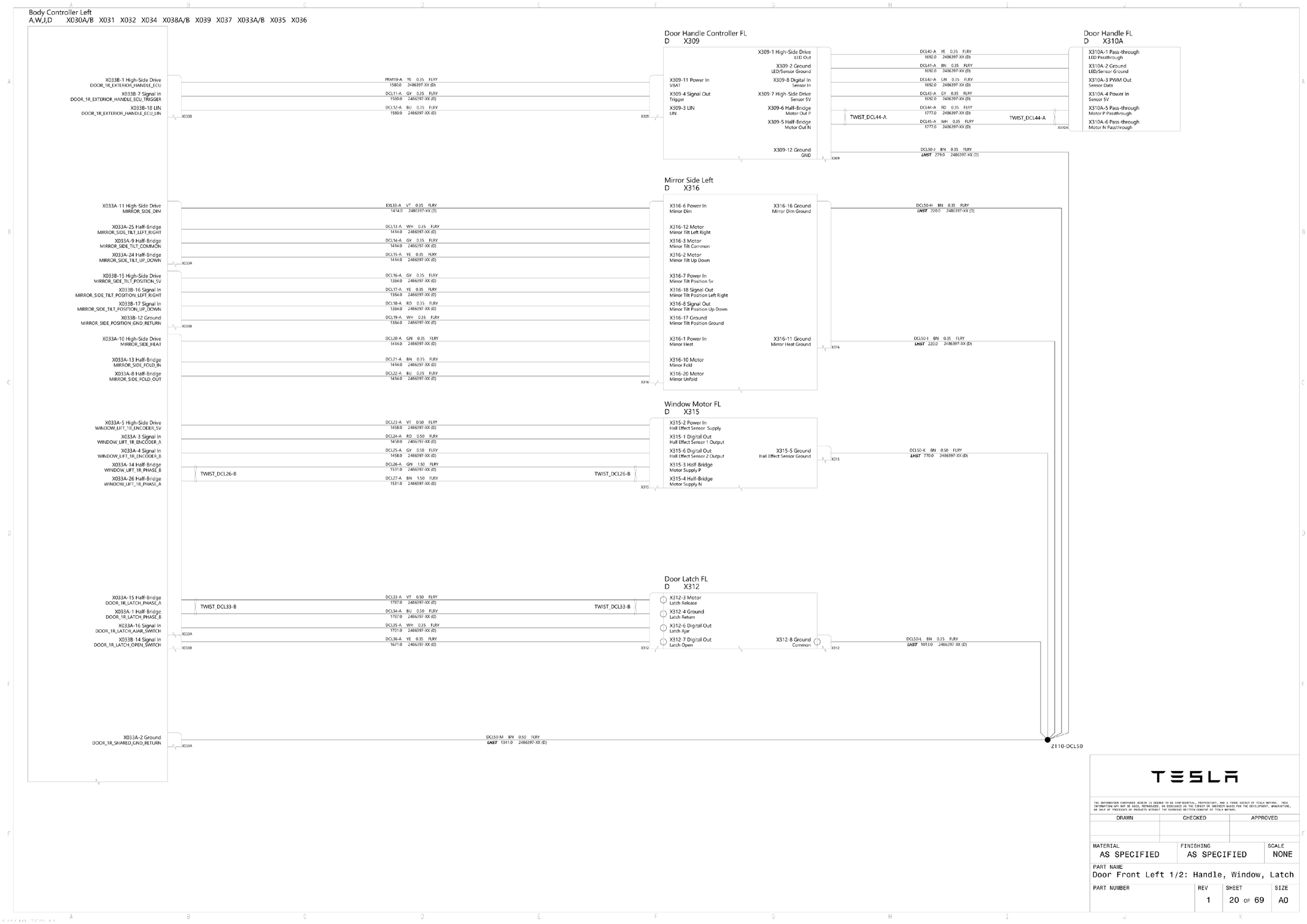

Door Front Left 1/2: Handle, Window, Latch - Wiring Diagram [ - 2/15/2022]

G15112759

Courtesy of TESLA, INC.
