Windshield - Remove And Replace: Install

  1. Remove the suction cups from the windshield assembly.

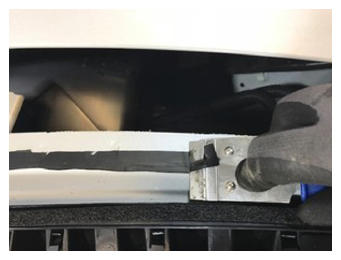

  2. Use a blade scraper to remove the old urethane from the vehicle.
    G15079287Courtesy of TESLA, INC.
  3. Remove the tape from the exterior of the LH and RH A-pillars.

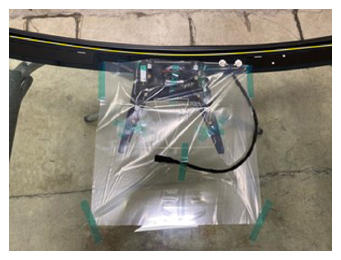

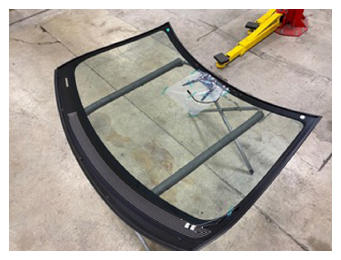

  4. With an assistant, position the windshield assembly onto the vehicle for a dry fit and note any locations where the pads need to be adjusted.
    NOTE: Verify datums align properly. Ensure the heater grid harness is taped onto the glass to avoid contact with the urethane pathway and body.
    G15079288Courtesy of TESLA, INC.
    G15079289Courtesy of TESLA, INC.

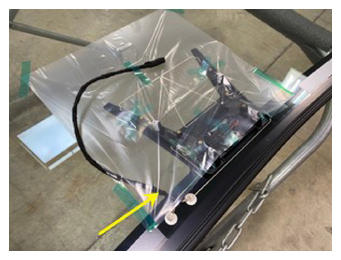

    G15079290Courtesy of TESLA, INC.
  5. Remove the glass from the vehicle.

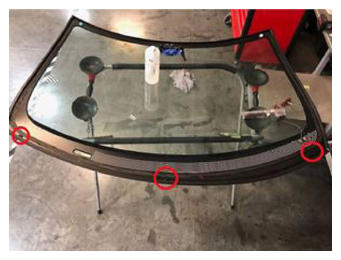

  6. If necessary, perform the pad adjustment.
    G15079291Courtesy of TESLA, INC.
  7. Clean the urethane path on the vehicle with an isopropyl alcohol (IPA) wipe. Allow the surface to dry before continuing to the next step.
    NOTE: Ensure the inside of glass is clean and smudge free near the VIN plate as it won't be accessible once installed.
  8. Apply urethane primer to the windshield and vehicle body along the urethane path and in areas that were damaged during removal of the windshield assembly.
    NOTE: Allow the primer to dry for at least 2 minute.

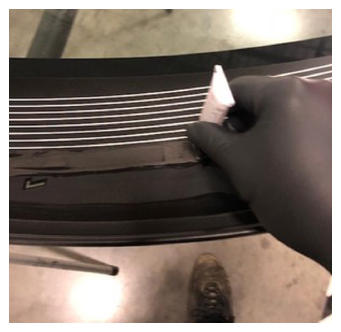

    G15079292Courtesy of TESLA, INC.

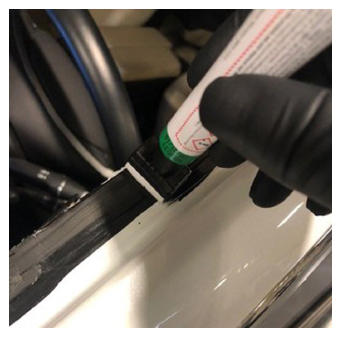

    G15079293Courtesy of TESLA, INC.

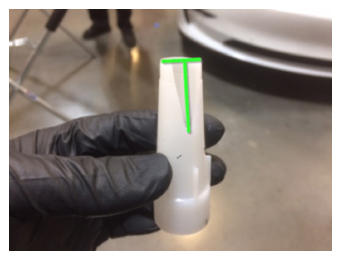

  9. Prepare the caulking gun and urethane.
    NOTE: Opening must be 8 mm wide and 14 mm tall.
    G15079294Courtesy of TESLA, INC.

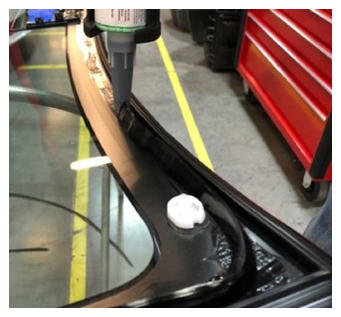

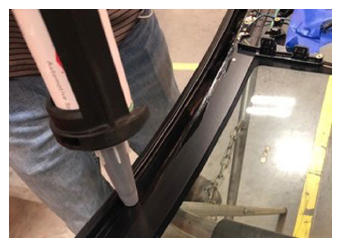

  10. Apply urethane to the windshield following the original path.
    NOTE: Make sure that the urethane bead has a triangular cross-section of approximate width 8 mm and height 14 mm.
    NOTE: Fill any gaps in urethane to ensure consistent bead

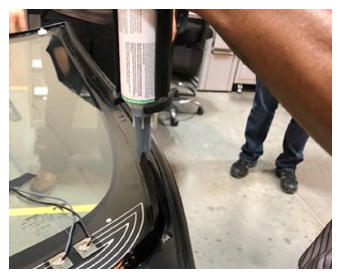

    G15079295Courtesy of TESLA, INC.
    G15079296Courtesy of TESLA, INC.
    G15079297Courtesy of TESLA, INC.

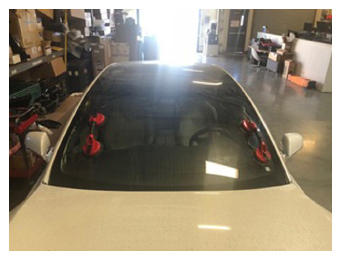

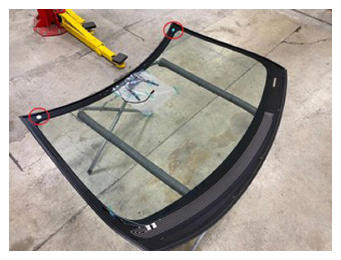

  11. With an assistant, install the new windshield assembly onto the vehicle, but do not set it yet.
    NOTE: Make sure to align the datums at top of the windshield.
    G15079298Courtesy of TESLA, INC.
    G15079299Courtesy of TESLA, INC.

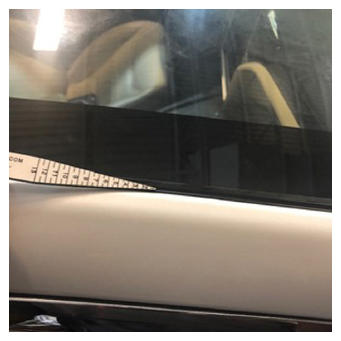

  12. Check the gap and flush of the windshield assembly to the body before fully seating the windshield assembly.
    G15079300Courtesy of TESLA, INC.
    G15079301Courtesy of TESLA, INC.

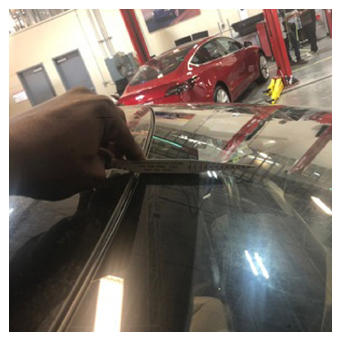

  13. Fully seat the windshield assembly, check the gap and flush, and adjust if necessary.
    NOTE: If needed, a ballast bag can be used to hold the windshield down as it cures.
    G15079302Courtesy of TESLA, INC.
    G15079303Courtesy of TESLA, INC.
    G15079304Courtesy of TESLA, INC.

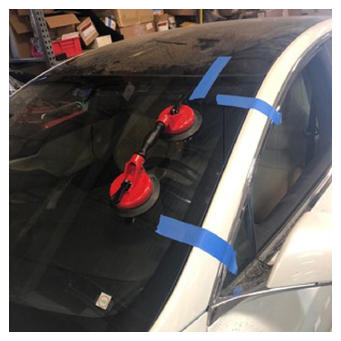

  14. Apply tape to secure the windshield to the body while the urethane cures.
    G15079305Courtesy of TESLA, INC.
  15. Remove the suction cups from the windshield.
  16. Install the cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .
  17. Install the LH and RH wiper arms. See Wiper Arm - LH (Remove and Replace) .
  18. Install the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .
  19. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  20. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  21. Close the hood.
  22. Install the front portion of the headliner into position, and then secure the clips (x5).

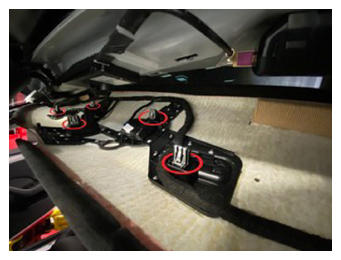

    G15079306Courtesy of TESLA, INC.
  23. Connect the humidity sensor electrical connector.

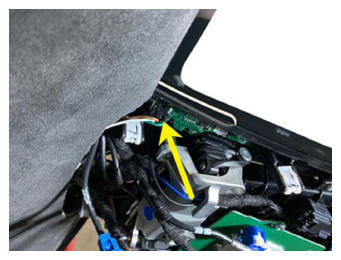

    G15079307Courtesy of TESLA, INC.

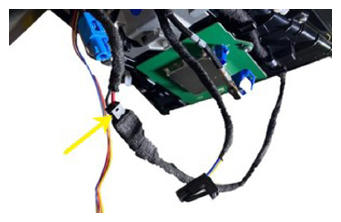

  24. Connect the heated camera area electrical connector.
    G15079308Courtesy of TESLA, INC.

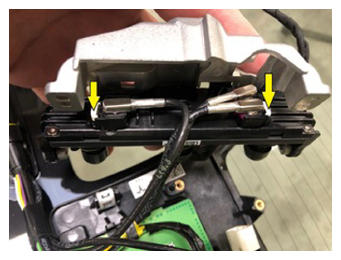

  25. Connect the triple camera electrical connectors (x2).
    G15079309Courtesy of TESLA, INC.

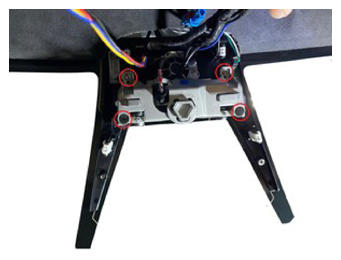

  26. Install the screws (x4) that attach the mounting plate to the windshield and allow the camera to hang by the harness.

    0.8 N.m (7 lbs - in)

    NOTE: Make sure the wire harness is routed correctly.

    Tip:

    Use of the following tool(s) is recommended:

    • Torx T10 bit
    G15079310Courtesy of TESLA, INC.
  27. Position the triple cam hood onto the windshield, and then secure the clips (x2) that attach hood to the windshield.

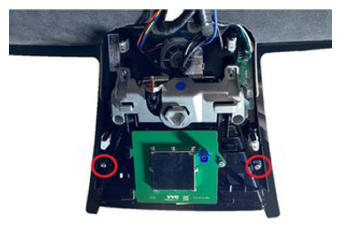

    G15079311Courtesy of TESLA, INC.
    G15079312Courtesy of TESLA, INC.
  28. Connect the harness electrical connector to the humidity and temperature sensor on the windshield.

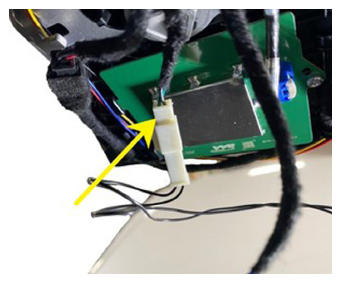

    G15079313Courtesy of TESLA, INC.

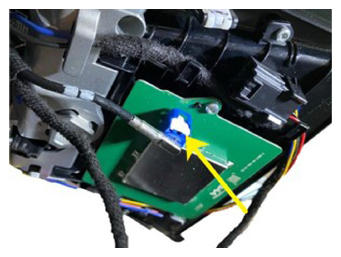

  29. Connect the harness electrical connector for the GPS/GNSS antenna.
    G15079314Courtesy of TESLA, INC.

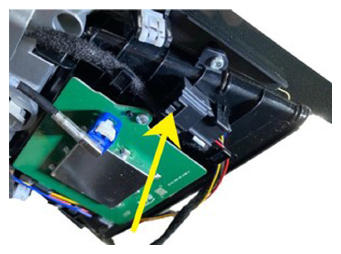

  30. Connect the harness electrical connector for the fan.
    G15079315Courtesy of TESLA, INC.
  31. Install the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  32. Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  33. Install the passenger sun visor. See Sun Visor - LH (Remove and Replace) .
  34. Install the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  35. Install the RH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
  36. Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  37. Repeat step  33 through step  36 for the LH side of the vehicle.
  38. Connect a laptop with Toolbox 3 to the vehicle.
  39. In Toolbox, click the Actions/Autodiag  tab, and search for 'Redeploy'.
  40. Click SERVICE CAN REDEPLOY  , and then click Run  and allow the routine to complete.
    NOTE: Select 'X' at top right of window to close once complete. The routine will state pass but update will continue to run in the background. Allow the update to complete and do not power down the vehicle. There will be no UI message to indicate update has completed.
  41. Perform forward facing camera pitch verification. See Camera - Forward Facing (Pitch Verification) .
  42. Reinstall the vehicle firmware. See FIRMWARE REINSTALL - TOUCHSCREEN .
  43. Raise the LH front window and close the LH front door.
  44. Remove the tape securing the windshield to vehicle once the urethane has cured.
