Windshield - Remove And Install: Install

  1. Remove the suction cups from the windshield assembly.
  2. Inspect the windshield for any damage that is not reworkable.
    NOTE: Replace the windshield if there is any damage that can not be rectified. Damages include: cracked glass, damaged heater grids, damaged/separating triple camera mount.
  3. Use a blade scraper to remove the old urethane from the vehicle.

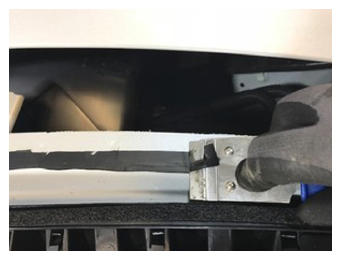

    G15079234Courtesy of TESLA, INC.
  4. Remove the tape from the exterior of the LH and RH A-pillars.

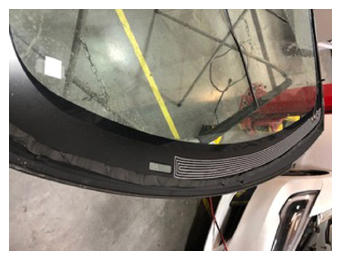

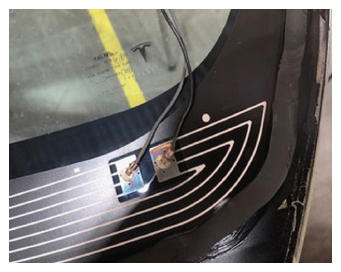

  5. Use a blade scraper to remove the urethane bead and windshield seals from the glass.
    G15079235Courtesy of TESLA, INC.
    G15079236Courtesy of TESLA, INC.
    G15079237Courtesy of TESLA, INC.

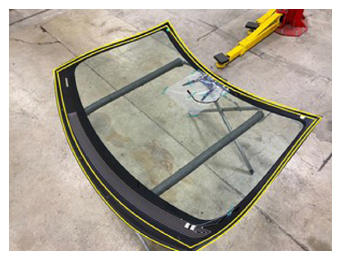

    G15079238Courtesy of TESLA, INC.

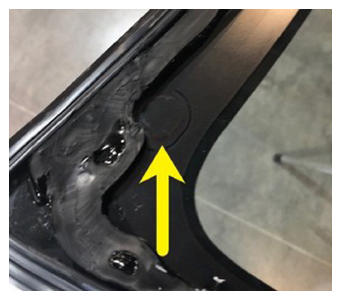

  6. Use a permanent marker to draw an outline around the datums to assist in installation of the new datums.
    G15079239Courtesy of TESLA, INC.

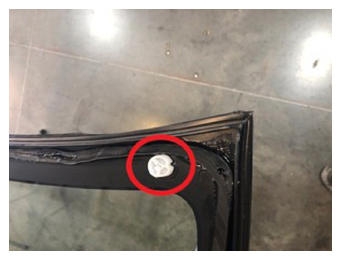

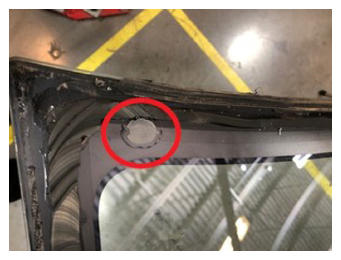

  7. Use a blade scraper to remove the damaged datums.
    G15079240Courtesy of TESLA, INC.
    G15079241Courtesy of TESLA, INC.
  8. Use a blade scraper to remove the net pads (x3).

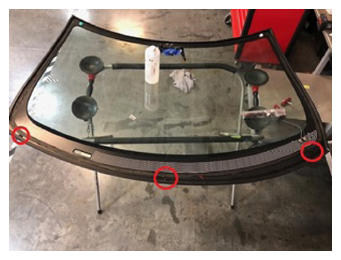

    G15079242Courtesy of TESLA, INC.

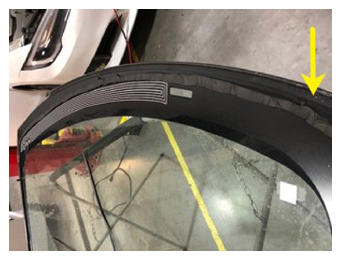

  9. Use a blade scraper to clean any double sided tape residue.
    NOTE: Use an eraser wheel if necessary.

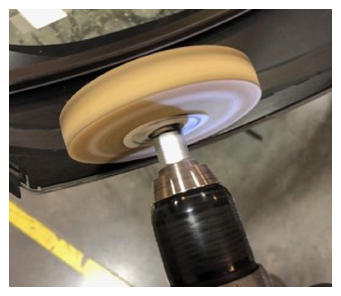

    G15079243Courtesy of TESLA, INC.
    G15079244Courtesy of TESLA, INC.
  10. Clean all mating surfaces with Isopropyl Alcohol (IPA).

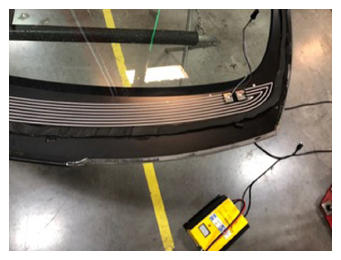

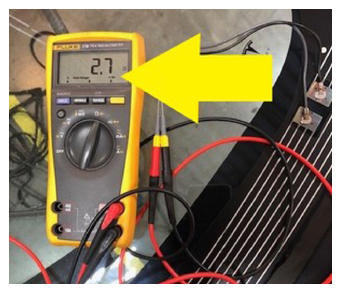

  11. Measure the resistance of the wiper heater grid to check continuity.
    NOTE: All resistances @ 23°C. Tolerance +/-15%. Heated Wiper Area (HWA): 2.34 ohms.
    G15079245Courtesy of TESLA, INC.

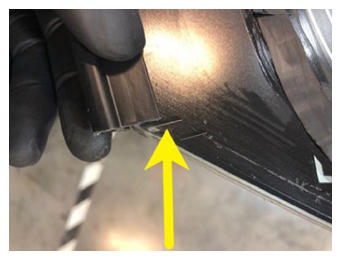

  12. Install the windshield edge seal.
    NOTE: Follow the windshield alignment marks at the lower corners of the glass.

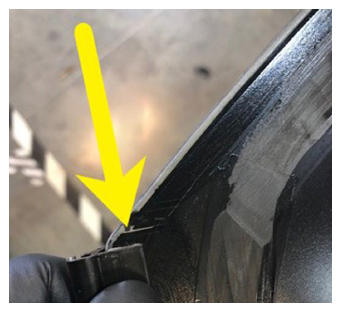

    G15079246Courtesy of TESLA, INC.
    G15079247Courtesy of TESLA, INC.

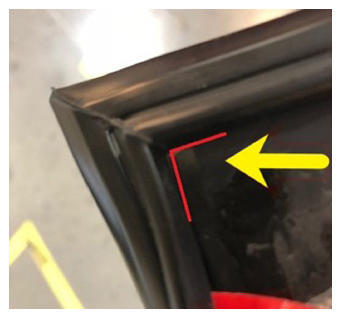

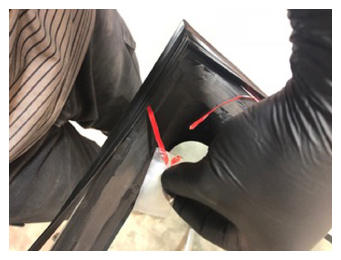

  13. Install the windshield lip seal.
    NOTE: Follow the windshield alignment marks at the upper corners of glass. Start from one corner and peel the tape while applying the seal inch by inch to ensure proper fitment.

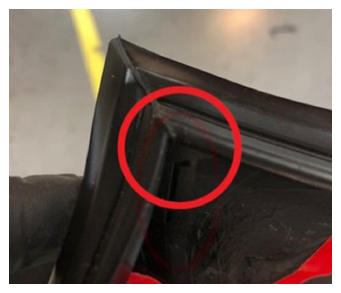

    G15079248Courtesy of TESLA, INC.
    G15079249Courtesy of TESLA, INC.
    G15079250Courtesy of TESLA, INC.

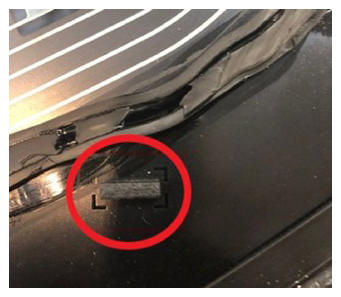

  14. Install the net pads.
    NOTE: Use the alignment marks on the glass for installation.
    G15079251Courtesy of TESLA, INC.
    G15079252Courtesy of TESLA, INC.

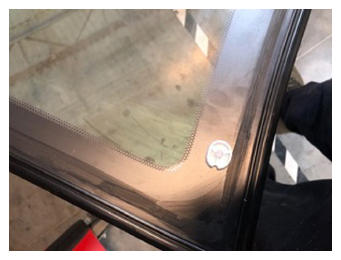

  15. Install the LH and RH side datum.

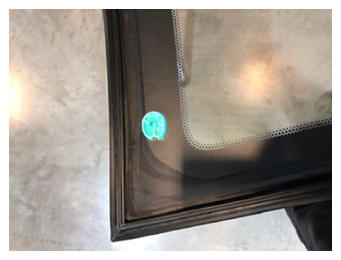

    G15079253Courtesy of TESLA, INC.
    G15079254Courtesy of TESLA, INC.

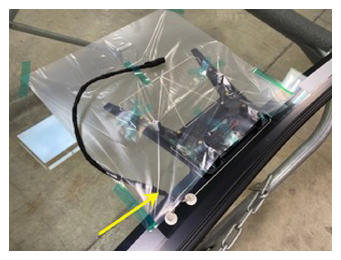

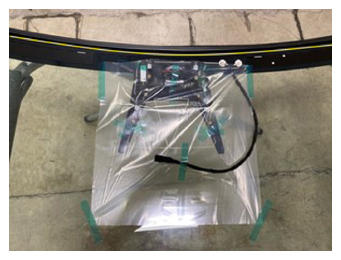

  16. With an assistant, position the windshield assembly onto the vehicle for a dry fit and note any locations where the pads need to be adjusted.
    NOTE: Verify datums align properly. Ensure the heater grid harness is taped onto the glass to avoid contact with the urethane pathway and body.
    G15079255Courtesy of TESLA, INC.
    G15079256Courtesy of TESLA, INC.
    G15079257Courtesy of TESLA, INC.
  17. Visually inspect the lip and edge seal.
    NOTE: The seal should be sitting against the vehicle body and look even all the way through.

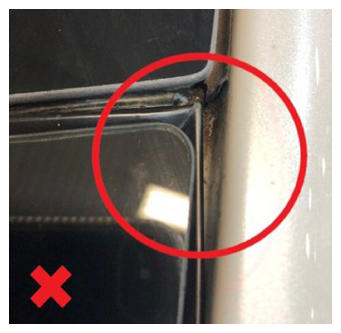

    G15079258Courtesy of TESLA, INC.

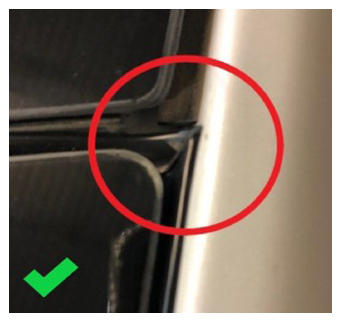

    G15079259Courtesy of TESLA, INC.
  18. Remove the glass from the vehicle.
  19. If necessary, perform the pad adjustment.
    G15079260Courtesy of TESLA, INC.
  20. Clean the urethane path on the vehicle with an isopropyl alcohol (IPA) wipe. Allow the surface to dry before continuing to the next step.
    NOTE: Ensure the inside of glass is clean and smudge free near the VIN plate as it won't be accessible once installed.

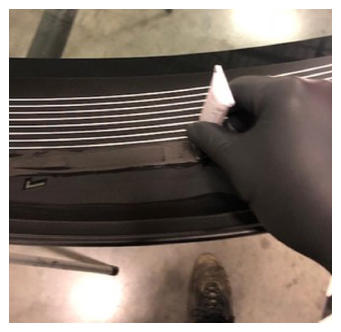

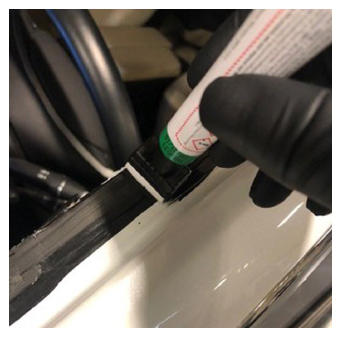

  21. Apply urethane primer to the windshield and vehicle body along the urethane path and in areas that were damaged during removal of the windshield assembly.
    NOTE: Allow the primer to dry for at least 2 minutes.
    G15079261Courtesy of TESLA, INC.
    G15079262Courtesy of TESLA, INC.
  22. Prepare the caulking gun and urethane.
    NOTE: Opening must be 8 mm wide and 14 mm tall.

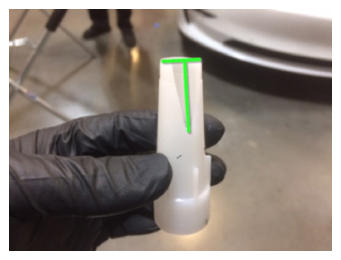

    G15079263Courtesy of TESLA, INC.

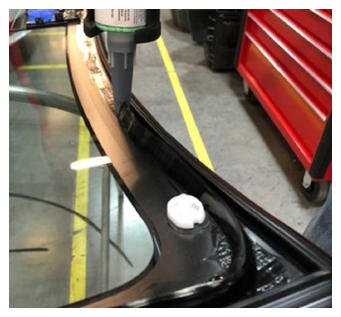

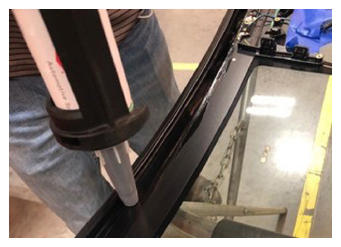

  23. Apply urethane to the windshield following the original path.
    NOTE: Make sure that the urethane bead has a triangular cross-section of approximate width 8 mm and height 14 mm.
    NOTE: Fill any gaps in urethane to ensure consistent bead

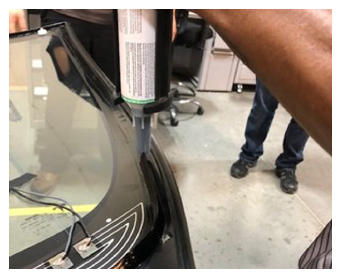

    G15079264Courtesy of TESLA, INC.
    G15079265Courtesy of TESLA, INC.
    G15079266Courtesy of TESLA, INC.

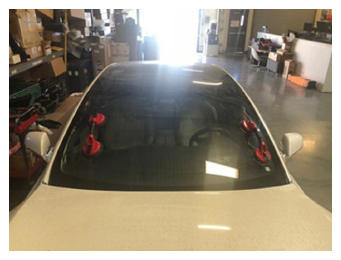

  24. With an assistant, install the new windshield assembly onto the vehicle, but do not set it yet.
    NOTE: Make sure to align the datums at top of the windshield.

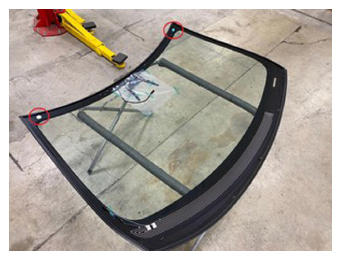

    G15079267Courtesy of TESLA, INC.
    G15079268Courtesy of TESLA, INC.

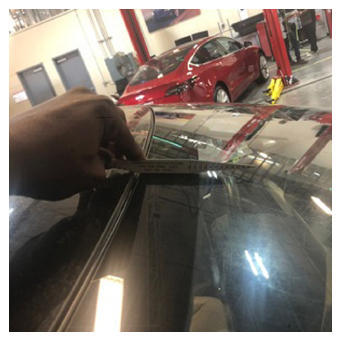

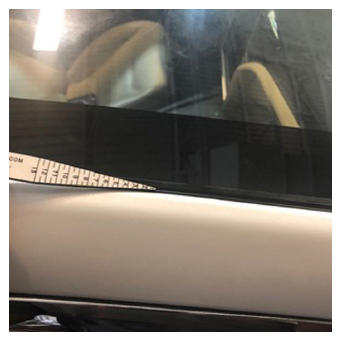

  25. Check the gap and flush of the windshield assembly to the body before fully seating the windshield assembly.
    G15079269Courtesy of TESLA, INC.
    G15079270Courtesy of TESLA, INC.
  26. Fully seat the windshield assembly, check the gap and flush, and adjust if necessary.
    NOTE: If needed, a ballast bag can be used to hold the windshield down as it cures.
    G15079271Courtesy of TESLA, INC.
    G15079272Courtesy of TESLA, INC.
    G15079273Courtesy of TESLA, INC.

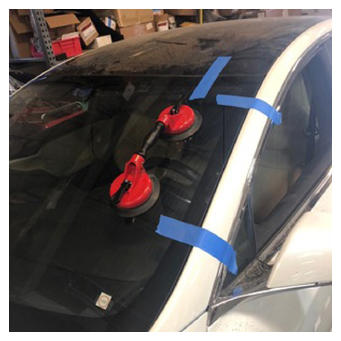

  27. Apply tape to secure the windshield to the body while the urethane cures.
    G15079274Courtesy of TESLA, INC.
  28. Remove the suction cups from the windshield.
  29. Install the cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .
  30. Install the LH and RH wiper arms. See Wiper Arm - LH (Remove and Replace) .
  31. Install the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .
  32. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  33. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  34. Close the hood.
  35. Install the front portion of the headliner into position, and then secure the clips (x5).

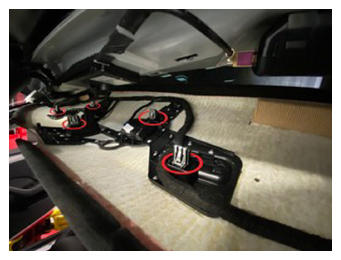

    G15079275Courtesy of TESLA, INC.
  36. Connect the humidity sensor electrical connector.

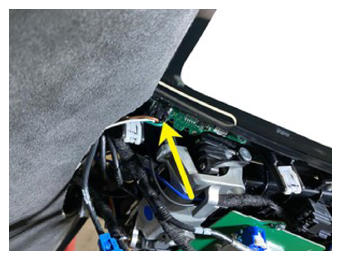

    G15079276Courtesy of TESLA, INC.
  37. Connect the heated camera area electrical connector.

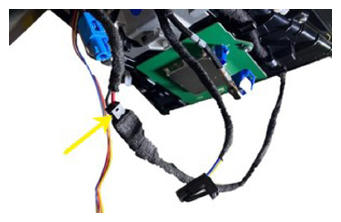

    G15079277Courtesy of TESLA, INC.

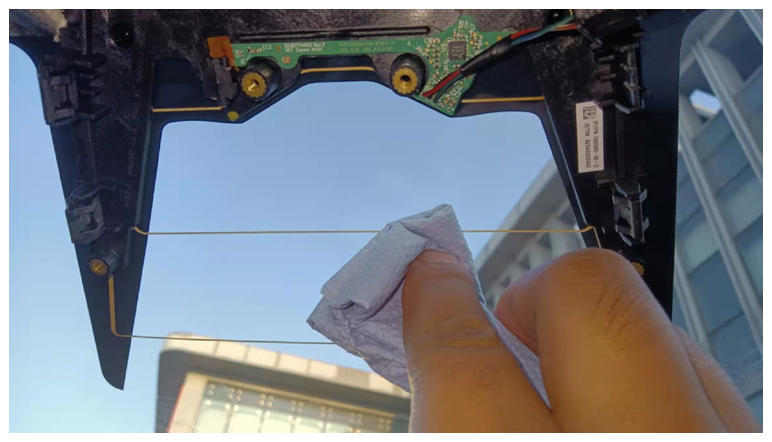

  38. Clean the inner windshield camera viewing area with a clean microfiber cloth and glass cleaner. Let the windshield fully dry before continuing.
    CAUTION: Verify that the windshield has no stains or leftover residue. Otherwise, Autopilot features may be hindered.
    G15079278Courtesy of TESLA, INC.

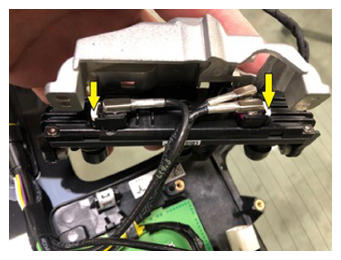

  39. Connect the triple camera electrical connectors (x2).
    G15079279Courtesy of TESLA, INC.

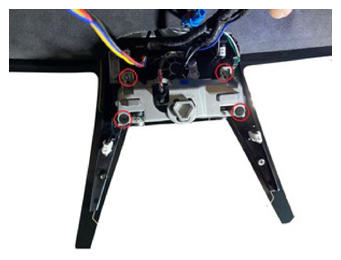

  40. Install the screws (x4) that attach the mounting plate to the windshield and allow the camera to hang by the harness.

    0.8 N.m (7 in-lbs)

    NOTE: Make sure the wire harness is routed correctly.

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 bit
    G15079280Courtesy of TESLA, INC.

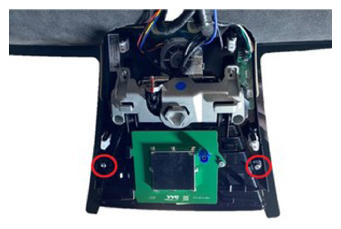

  41. Position the triple cam hood onto the windshield, and then secure the clips (x2) that attach hood to the windshield.
    G15079281Courtesy of TESLA, INC.
    G15079282Courtesy of TESLA, INC.

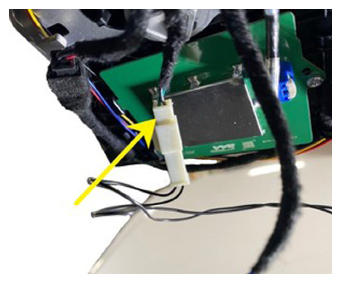

  42. Connect the harness electrical connector to the humidity and temperature sensor on the windshield.
    G15079283Courtesy of TESLA, INC.
  43. Connect the harness electrical connector for the GPS/GNSS antenna.

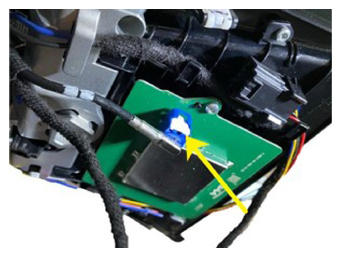

    G15079284Courtesy of TESLA, INC.

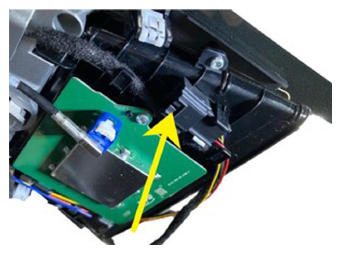

  44. Connect the harness electrical connector for the fan.
    G15079285Courtesy of TESLA, INC.
  45. Install the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  46. Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  47. Install the passenger sun visor. See Sun Visor - LH (Remove and Replace) .
  48. Install the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  49. Install the RH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
  50. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  51. Repeat steps  47,  48,  49, and  50 for the LH side of the vehicle.
  52. Perform forward facing camera pitch verification. See Camera - Forward Facing (Pitch Verification) .
  53. Raise the LH front window and close the LH front door.
  54. Remove the tape securing the windshield to vehicle once the urethane has cured.
