V Brace - Shock Tower - LH - Remove And Replace: Install

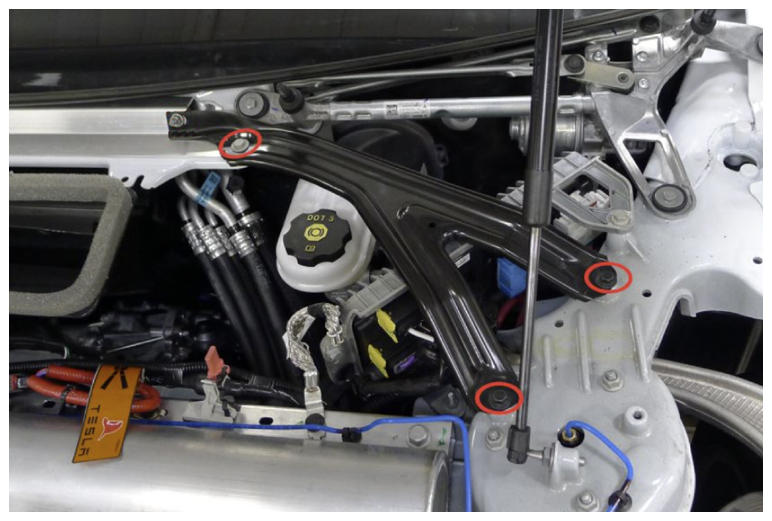

Position the LH shock tower V-brace onto the vehicle, and then install the bolts (x3) that attach the V-brace to the vehicle.
Torque 18 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

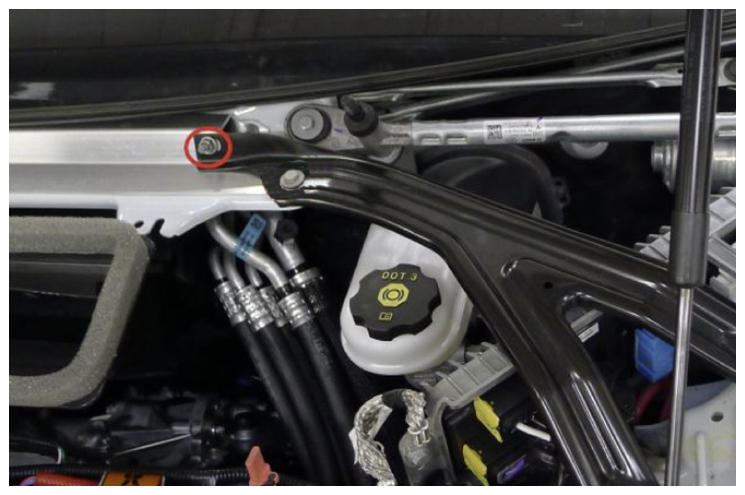

Install the nut that attaches the V-brace to the vehicle.
Torque 9 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.
Install the wiper cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .
Install the LH and RH wiper arms. See Wiper Arm - LH (Remove and Replace) .
Install the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .

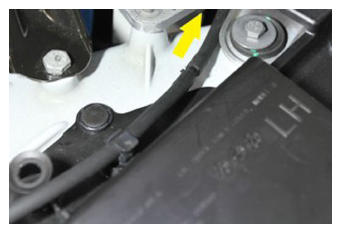

Install the washer hose nozzle near the LH shock tower cover.

Courtesy of TESLA, INC.
Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
