Crossmember - V Brace - Shock Tower - Remove And Replace: Install

  1. Position the shock tower V-brace crossmember into the vehicle, and then install the nuts (x2) that attach the V-brace crossmember to the vehicle.

    Torque 18 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

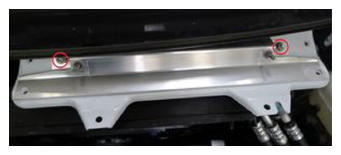

    G15078073Courtesy of TESLA, INC.

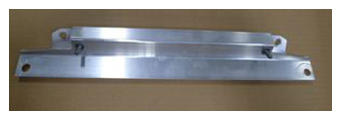

    G15078074Courtesy of TESLA, INC.
  2. Install the LH and RH V-braces. See V Brace - Shock Tower - LH (Remove And Replace) .
  3. Install the wiper cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .
  4. Install the LH and RH wiper arms. See Wiper Arm - LH (Remove and Replace) .
  5. Install the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .
  6. Install the washer hose nozzle near the LH shock tower cover.

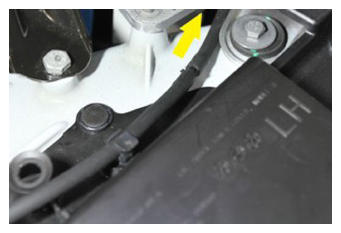

    G15078075Courtesy of TESLA, INC.
  7. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  8. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
