Wheel Arch Liner - Rear - LH - Remove And Replace: Remove

  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Post Lift .
  2. Remove the LH rear wheel. See Wheel (Remove and Install) .

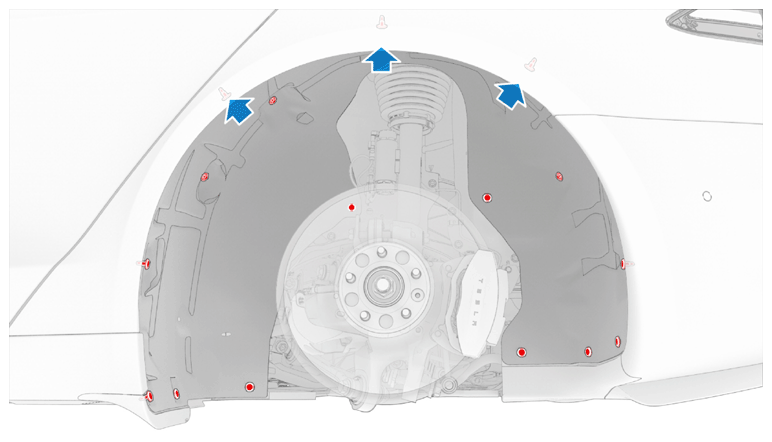

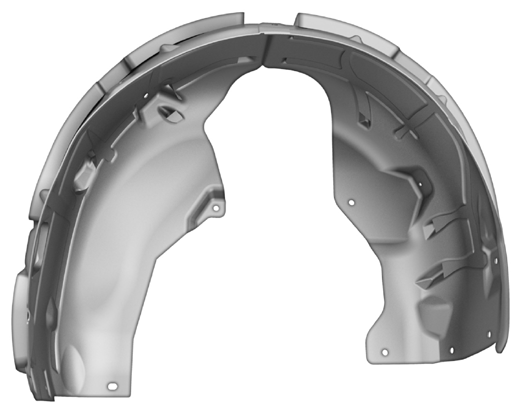

  3. Remove the push clips (x13) and fan clips (x3) that attach the LH rear wheel arch liner to the body, and then remove the liner from the vehicle.
    G15081070Courtesy of TESLA, INC.
    G15081071Courtesy of TESLA, INC.
