Pad - Lifting - Each - Remove and Replace: Remove

  1. On the vehicle touchscreen, set the suspension to "High" or "Very High."

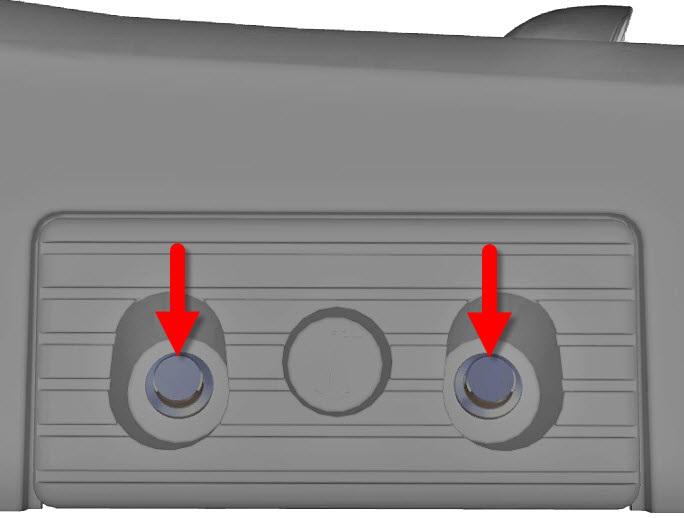

  2. Remove the bolts (x2) that attach the lifting pad to the body.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm deep socket
      G00631450Courtesy of TESLA, INC.
