Molding - Rocker Panel - LH - Remove And Replace: Install

Install the LH rocker panel molding on the vehicle.
NOTE: Secure the rocker panel molding at the front and rear fenders.

NOTE: Insert the rocker panel molding above the jack pads.

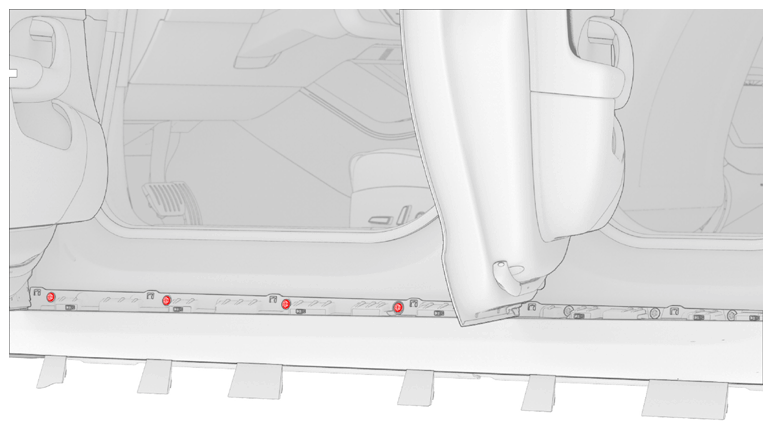

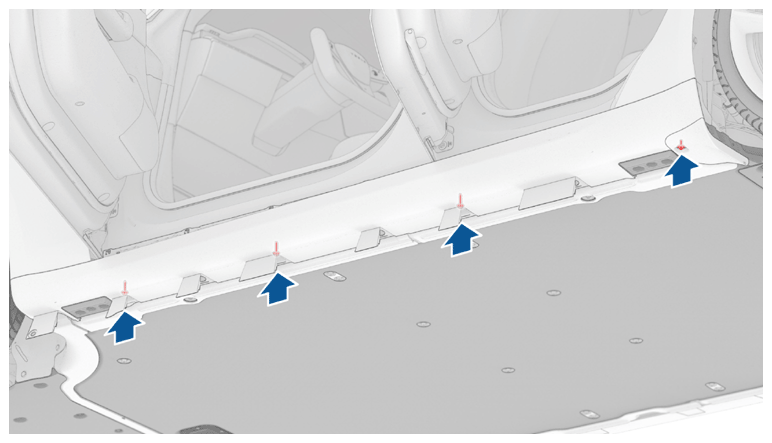

Install the upper bolts (x7) and lower bolts (x4) that attach the LH rocker panel molding to body.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 4 in extension
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

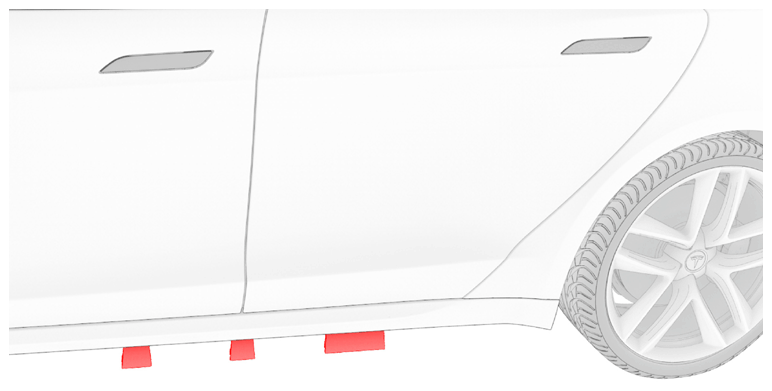

Secure the covers (x3) on the bottom edge of the LH rocker panel molding.

Courtesy of TESLA, INC.

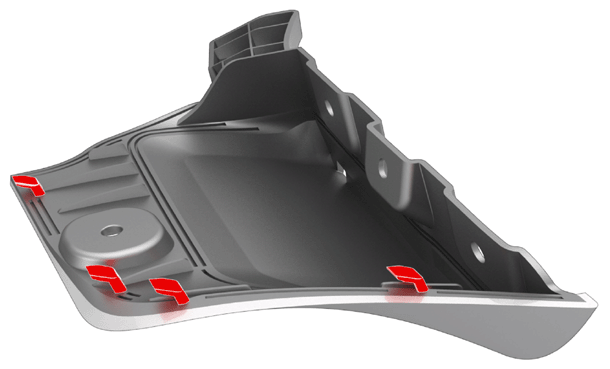

Secure the tabs (x5) that attach the LH rear wheel fairing to the body.

Courtesy of TESLA, INC.

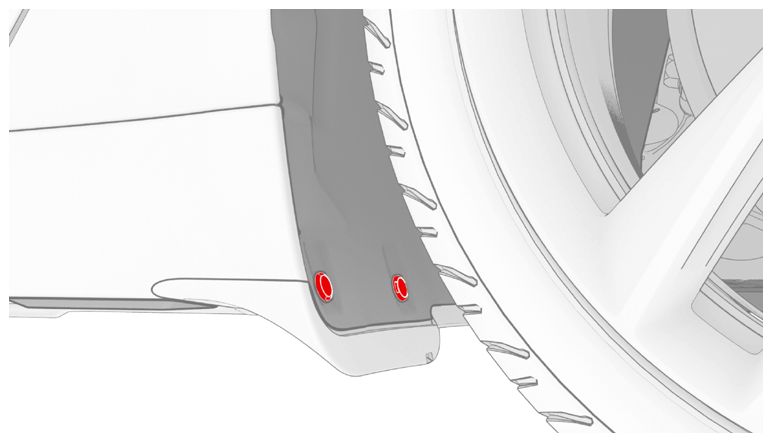

Install the bolts (x2) that attach the LH rear wheel fairing to the body.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 4 in extension
- 8 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

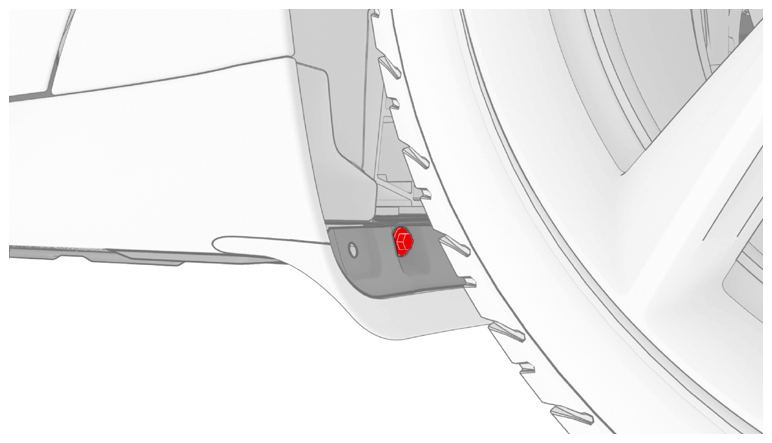

Install the push clips (x2) that attach the rocker panel molding to the LH rear wheel arch liner.

Courtesy of TESLA, INC.

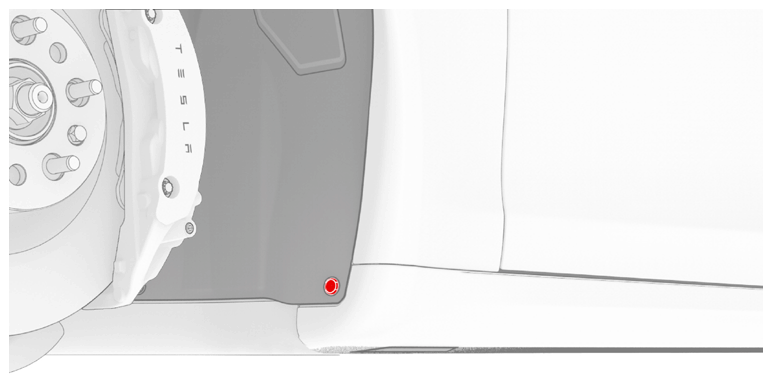

Install the push clip that attaches the rocker panel molding to the LH front wheel arch liner.

Courtesy of TESLA, INC.
Install the rocker panel scuff plate. See Scuff Plate - Rocker Panel - LH (Remove And Replace) .
