Brightwork - Body Side - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Open the LH rear door and lower the LH rear window.
- Open the liftgate.

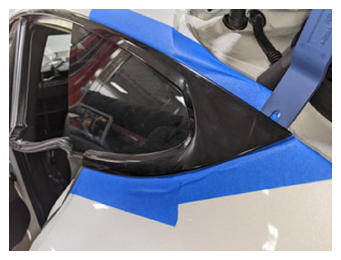

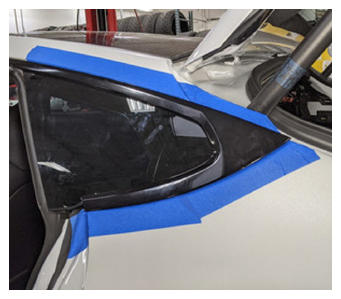

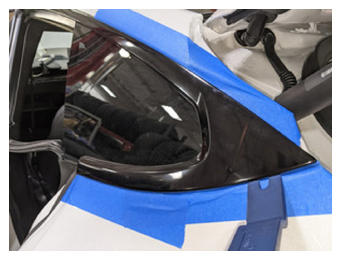

- Apply masking tape around the brightwork at the rear quarter glass to protect the paint from damage.

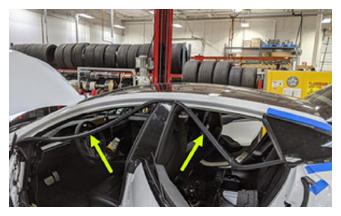

- Release the upper portion of the primary front and rear side body seals.

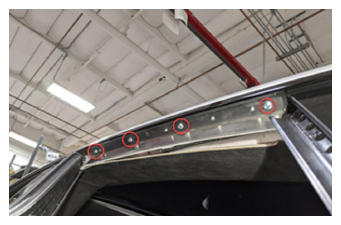

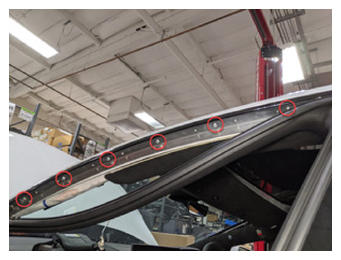

- Remove the screws (x12) that attach the body side brightwork to the body.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 bit

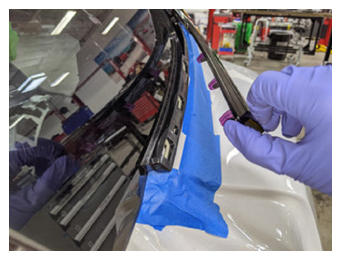

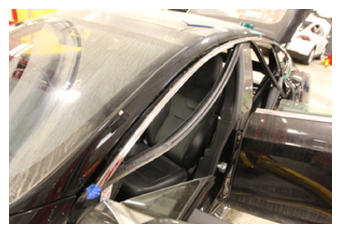

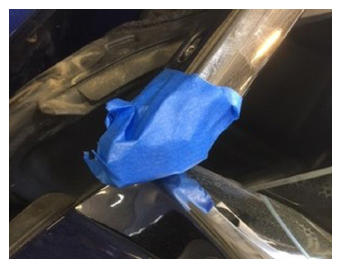

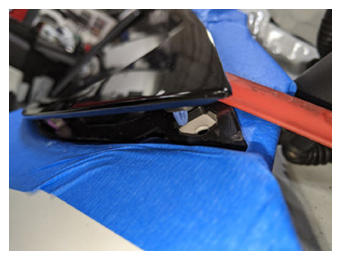

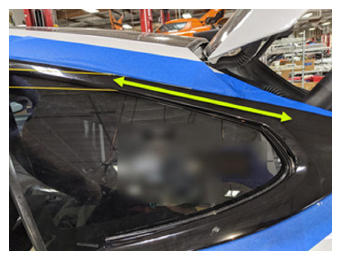

- Carefully separate the body side brightwork by working from the front to the rear of the vehicle.NOTE: If there is foam in the front of the brightwork, refer to bulletin SB-13-12-005, A-Pillar Wind Noise.NOTE: Apply masking tape to the front edge of the brightwork to prevent scratching the vehicle.
- With an assistant, carefully release the clips (x3) that attach the lower portion of the body side brightwork to the body starting at the end of the brightwork, and then work your way in. Separate the brightwork from the rear quarter glass, and then remove the brightwork from the vehicle.NOTE: 1x Datum.CAUTION: Do not damage the body side brightwork. If any damage occurs during removal, replace the brightwork.NOTE: Use double sided tape to secure the upper portion of the brightwork, and then use a soft wire to assist with the release of the double sided tape.
