Brightwork - Body Side - LH - Remove And Replace: Install

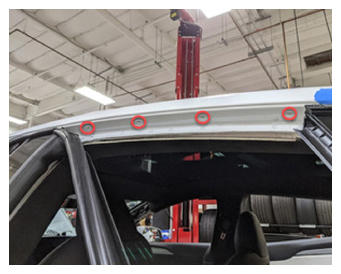

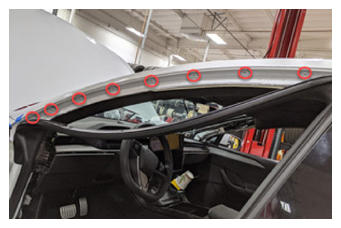

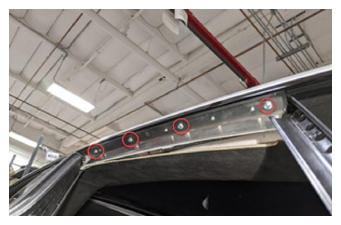

Remove and replace the grommets (x12) for the body side brightwork screws.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

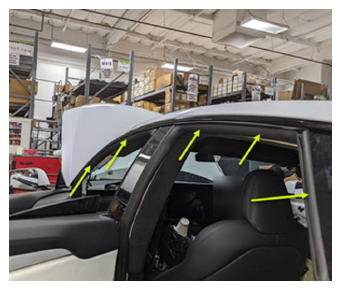

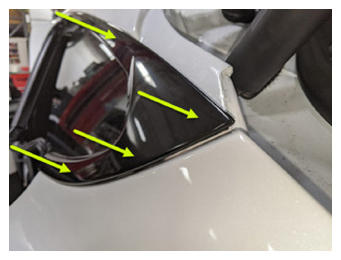

Clean the rear quarter glass and surrounding area of any residual debris with an Isopropyl Alcohol (IPA) wipe.
NOTE: Allow 1 minute for the IPA to dry before continuing to the next step.

Courtesy of TESLA, INC.

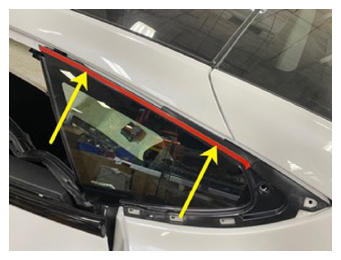

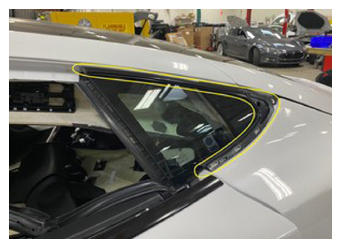

Apply 3M double sided tape onto the LH rear quarter glass assembly.

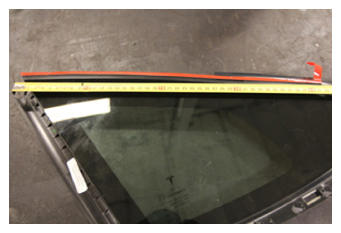

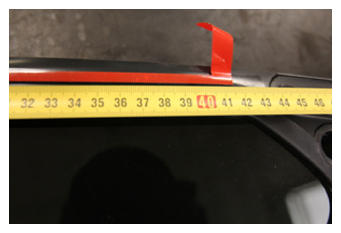

NOTE: Measure out and apply 415 mm of 3M double sided tape onto the upper quarter glass seal, and then peel the backing.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

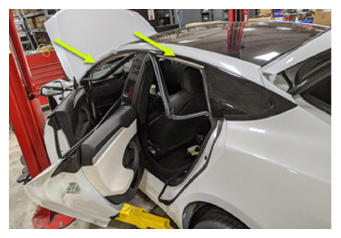

With an assistant, position the body side brightwork into position for installation, and then engage the clips (x3) into the rear quarter glass.
NOTE: 1x Datum

NOTE: Make sure when pressure is applied, the brightwork is positioned correctly as this is a one time use of the double sided tape.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

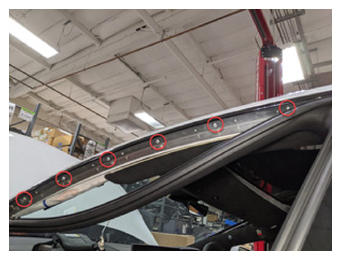

Install the screws (x12) that attach the body side brightwork to the body.
2.5 N.m (1.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the upper portion of the primary front and rear side body seals.
NOTE: Make sure the primary seals are properly seated along the interior trim.

Courtesy of TESLA, INC.

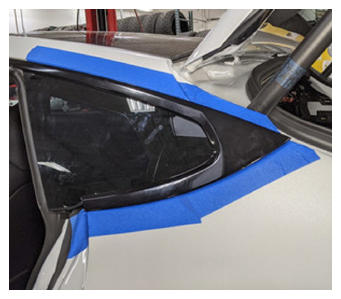

Remove the masking tape from the vehicle.

Courtesy of TESLA, INC.
Raise the LH rear window and close the LH rear door.
Close the liftgate.
Raise the LH front window and close the LH front door.
