- Clean the mating surfaces of the liftgate applique with an Isopropyl Alcohol (IPA) wipe.
NOTE:
Clean away any residue.
NOTE:
Use your thumb to help roll off the adhesive.
NOTE:
Allow 1 minute for the IPA to dry before continuing to the next step.
 Courtesy of TESLA, INC.
|

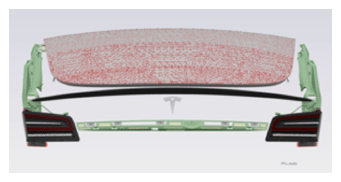

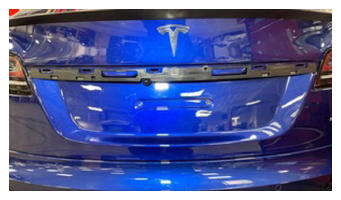

- Install the applique tape onto the applique bracket.
CAUTION:
Be wary not to cover the rear facing camera.
NOTE:
Peel away the tape when the liftgate applique is to be installed.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

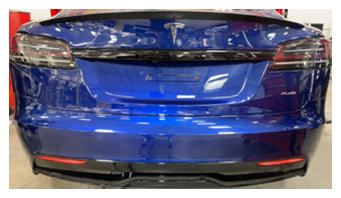

- Install the liftgate applique.
NOTE:
5x clips.
NOTE:
Peel away the tape when ready to install the applique.
NOTE:

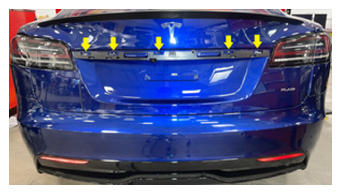

Align the applique using pin. Start by fastening the center clips, and then work your way out.
NOTE:

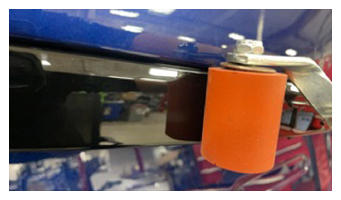

Use the seam roller to seat the adhesive areas.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
