Cover - Trailer Hitch - Remove And Replace: Install

  1. Install trailer hitch cover onto the rear diffuser, then fasten the tabs (x10), and then install the screws (x2) that attach the cover to the diffuser.

    2.5 N.m (1.8 ft-lbs)

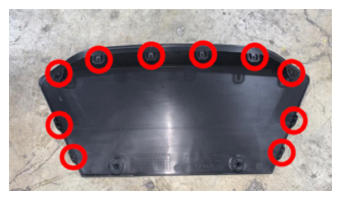

    G15077200Courtesy of TESLA, INC.

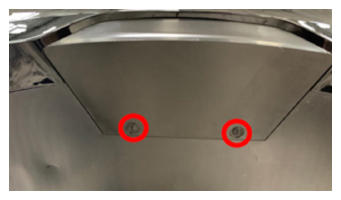

    G15077201Courtesy of TESLA, INC.
