Bracket - Support - Shotgun - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift .
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  4. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  5. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  6. Remove the underhood storage unit access panel. See Underhood Storage Unit Access Panel (Remove And Replace) .
  7. Remove the underhood storage unit. See Underhood Storage Unit (Remove And Install) .
  8. Remove the LH shock tower cover. See Cover - Shock Tower - LH (Remove and Replace) .

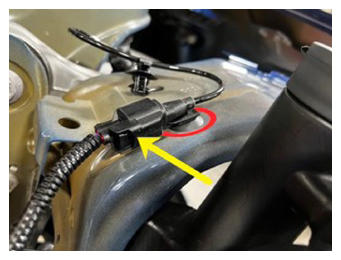

  9. Disconnect the LH front wheel speed sensor inline electrical connector, and then release the clip.
    G15077921Courtesy of TESLA, INC.

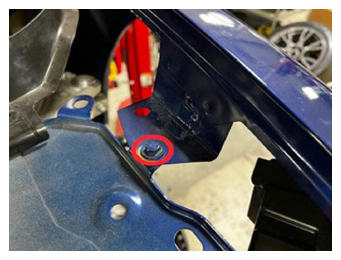

  10. Remove the center upper bolt that attaches the LH front fender to the shotgun support bracket.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    NOTE: Hold the fender in place so it does not fall when the rest of the bolts are removed.
    G15077922Courtesy of TESLA, INC.

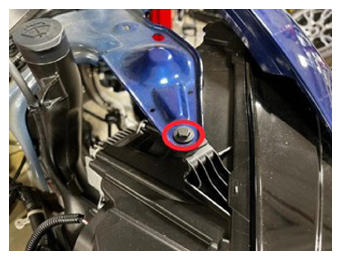

  11. Remove the bolt that attaches the LH headlight to the LH shotgun support bracket.

    5.9 N.m (4.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15077923Courtesy of TESLA, INC.

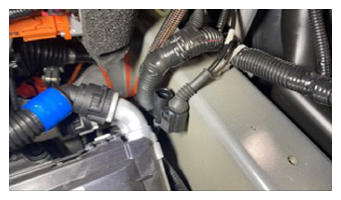

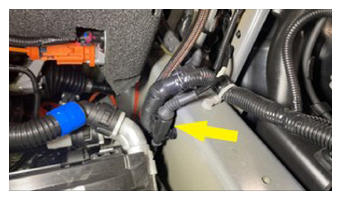

  12. Disconnect the LH front damper harness inline electrical connector.
    G15077924Courtesy of TESLA, INC.
    G15077925Courtesy of TESLA, INC.

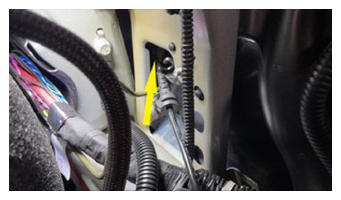

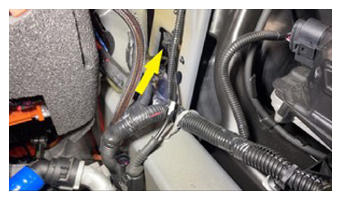

  13. Release the LH front damper harness clip from the body bracket, and then route out towards the wheel arch liner.
    G15077926Courtesy of TESLA, INC.
    G15077927Courtesy of TESLA, INC.
  14. Remove the LH front wheel. See Wheel (Remove and Install) .
  15. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .

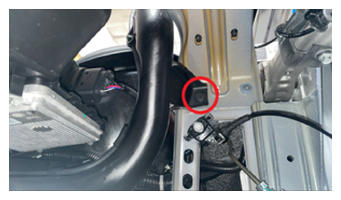

  16. Release the push clip for the windshield washer fluid bottle neck.
    G15077941Courtesy of TESLA, INC.

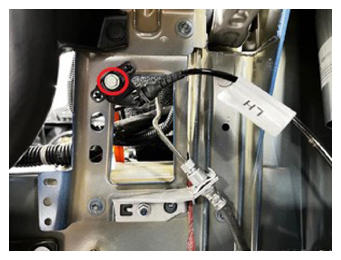

  17. Remove the bolt that attaches the damper harness body bracket to the LH shotgun support bracket.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    G15077942Courtesy of TESLA, INC.

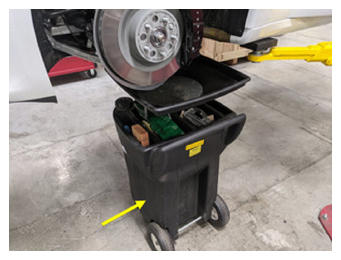

  18. Position an oil drain container underneath the LH front corner of the vehicle.
    G15077943Courtesy of TESLA, INC.

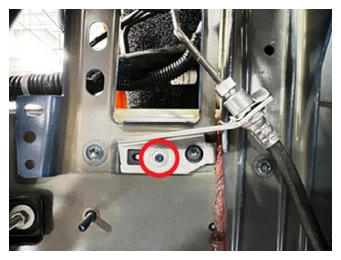

  19. Remove the nut that attaches the LH front brake hose to the LH shotgun support bracket.

    7 N.m (5.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    G15077944Courtesy of TESLA, INC.

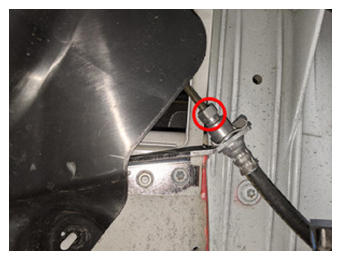

  20. Disconnect the LH front brake hose nut from the 4 tube bundle LH front brake line.

    16 N.m (11.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 12 mm 12-point combination wrench
    NOTE: Catch any brake fluid lost in the oil drain container.
    G15077945Courtesy of TESLA, INC.

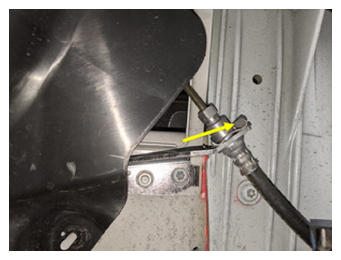

  21. Release the clip that attaches the LH front jounce hose to the LH shotgun support bracket.
    G15077946Courtesy of TESLA, INC.

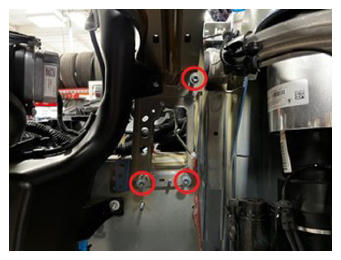

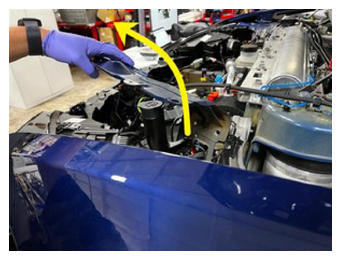

  22. Remove the bolts (x3) that attach the LH shotgun support bracket to the body, and then remove the bracket from the vehicle.

    30 N.m (22.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T40 socket
    G15077947Courtesy of TESLA, INC.
    G15077948Courtesy of TESLA, INC.
