Brace - Headlight - LH - Remove And Replace: Install

  1. Install the bolts (x4) that attach the LH headlight brace to the vehicle.
    NOTE: 4x bolts, 10 mm, 4 N.m

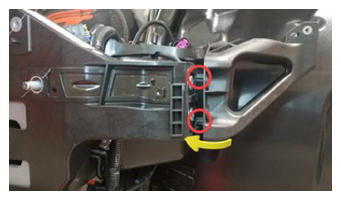

    G15092176Courtesy of TESLA, INC.

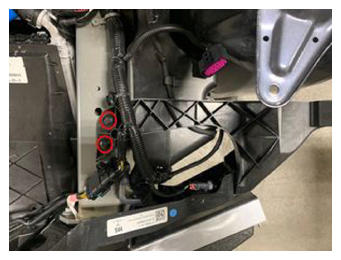

    G15092177Courtesy of TESLA, INC.

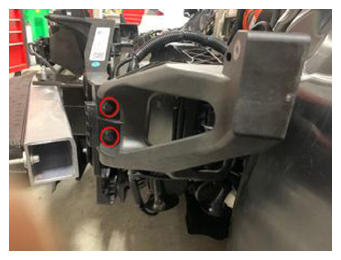

    G15092178Courtesy of TESLA, INC.
  2. Position the clips (x2) that attach the electrical harness to the LH headlight brace.
    CAUTION: Headlight brace tabs for the electrical harness clips are very fragile.

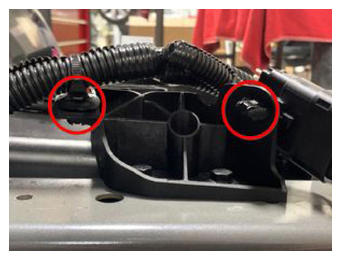

    G15092179Courtesy of TESLA, INC.
  3. Install the LH headlight. See Headlight - LH (Remove And Replace) .
  4. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
