Camera - Rear Facing (HW3) - Remove and Replace: Remove

  1. Apply tape around liftgate tail lights and applique
    NOTE: Apply tape to protect surrounding areas

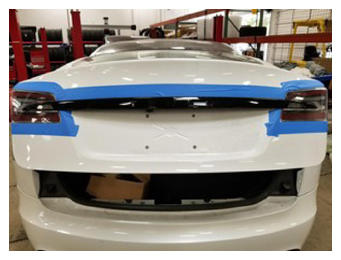

    G15092027Courtesy of TESLA, INC.
  2. Remove the LH and RH reverse lights. See Light - Fog/Reverse - Rear - LH (Remove And Replace) .
  3. Remove the bolts (x2) that attach the rear facing camera to the vehicle.
    NOTE: Take note of the wiring harness routing for the rear facing camera.

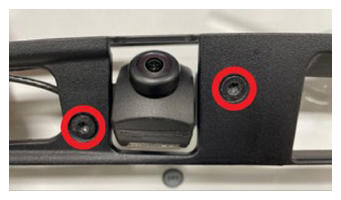

    G15092028Courtesy of TESLA, INC.

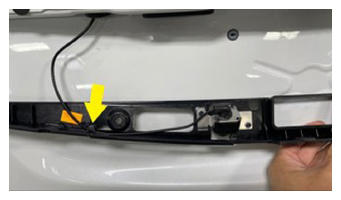

    G15092029Courtesy of TESLA, INC.
  4. Disconnect the rear facing camera connector from the RH liftgate harness.
    G15092030Courtesy of TESLA, INC.

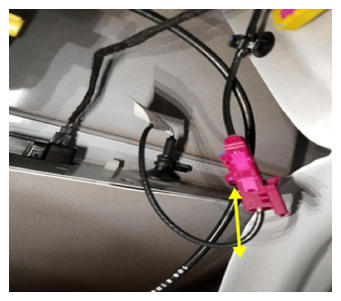

  5. Remove the grommet from the liftgate.
    G15092031Courtesy of TESLA, INC.
  6. Route the rear facing camera harness through the liftgate, and remove the camera from the vehicle.

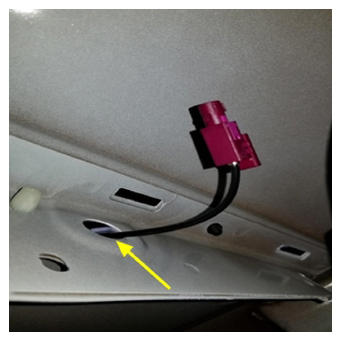

    G15092032Courtesy of TESLA, INC.
