Body Damper - Liftgate - LH - Remove And Replace: Remove

  1. Open the liftgate.
  2. Remove the screws (x2) that attach the LH liftgate body damper to the body.

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    • Stubby ratchet/stubby torque wrench

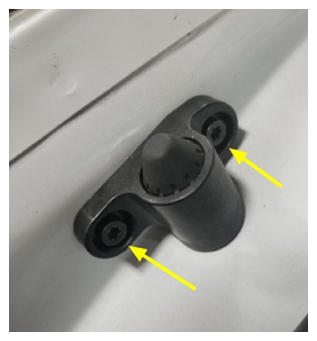

    G15079323Courtesy of TESLA, INC.

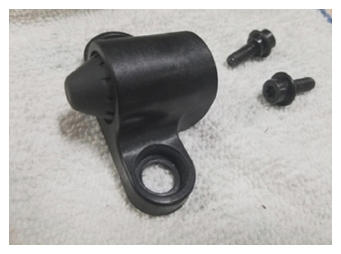

    G15079324Courtesy of TESLA, INC.
