Motor - Seat Tilt - Driver Seat - Remove And Replace: Remove

  1. Open LH doors and lower the LH windows.
  2. Remove the driver seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace) .
  3. Disconnect the LH driver seat, seat tilt motor electrical connector.

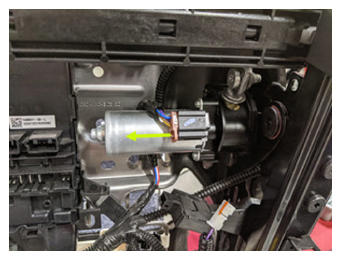

    G15081616Courtesy of TESLA, INC.
  4. Remove the bolts (x3) that attach the driver seat, seat tilt motor to the seat assembly.

    7.5 N.m (5.5 ft-lbs)

    NOTE: Do not remove the fastener for the adjustment arm.

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket

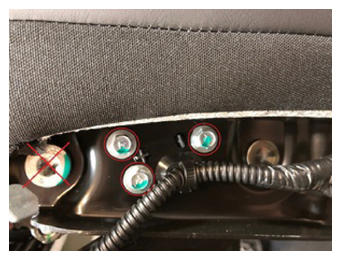

    G15081617Courtesy of TESLA, INC.
  5. Remove and discard the bolt that attaches the driver seat, seat tilt motor adjustment arm to the seat assembly.

    16 N.m (11.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T40 socket

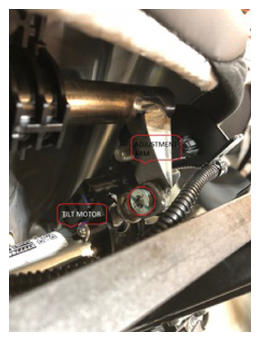

    G15081618Courtesy of TESLA, INC.

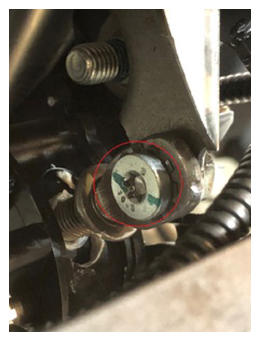

    G15081619Courtesy of TESLA, INC.

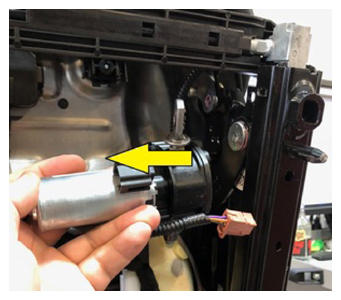

  6. Remove the driver seat, seat tilt motor from the seat cushion frame.

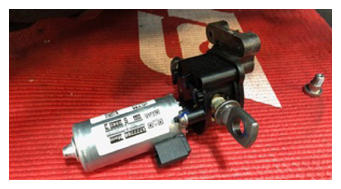

    G15081620Courtesy of TESLA, INC.
    G15081621Courtesy of TESLA, INC.
