Cover - Back Rest - Driver (With Inboard Airbag) - Remove And Replace: Remove

  1. Remove the driver seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove And Replace) .
  2. With assistance, place the driver seat on a protected surface so that the underside of the seat can be accessed.

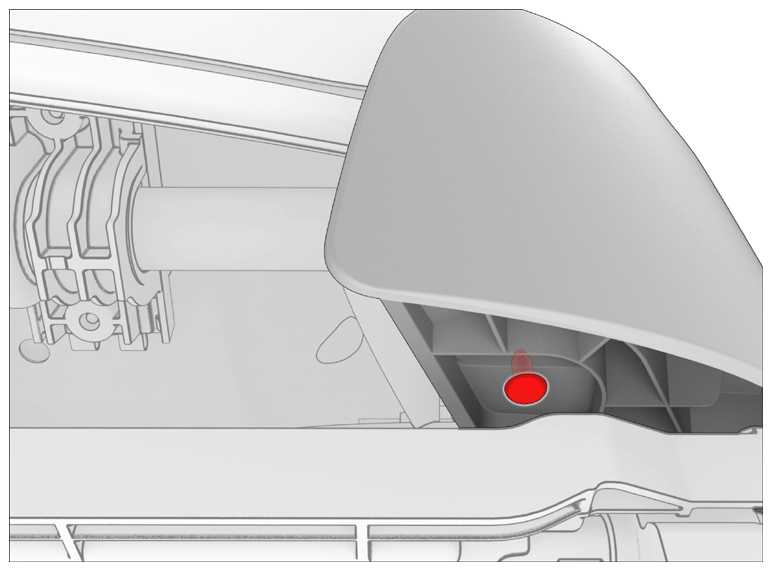

  3. Remove the screw that attaches the driver seat outboard side shield to the seat assembly.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15082927Courtesy of TESLA, INC.

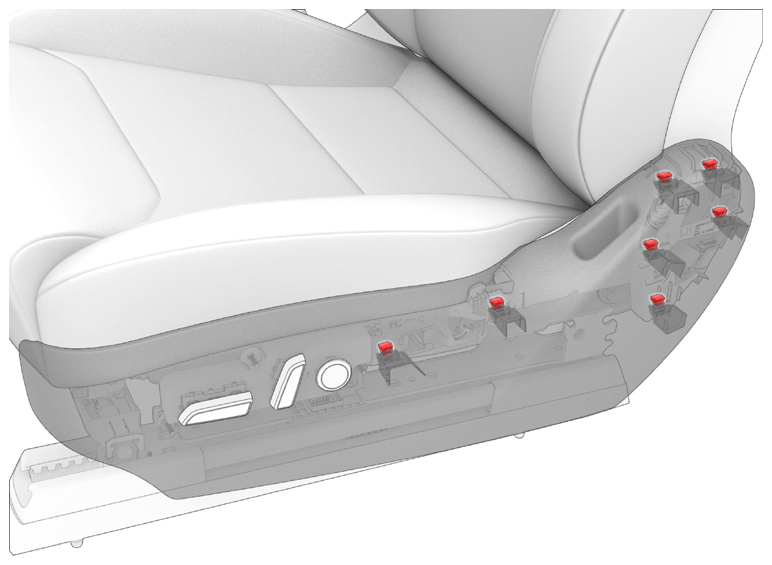

  4. Carefully release the clips (x7) that attach the driver seat outboard side shield to the seat assembly, but do not fully remove the side shield from the seat assembly.
    G15082928Courtesy of TESLA, INC.

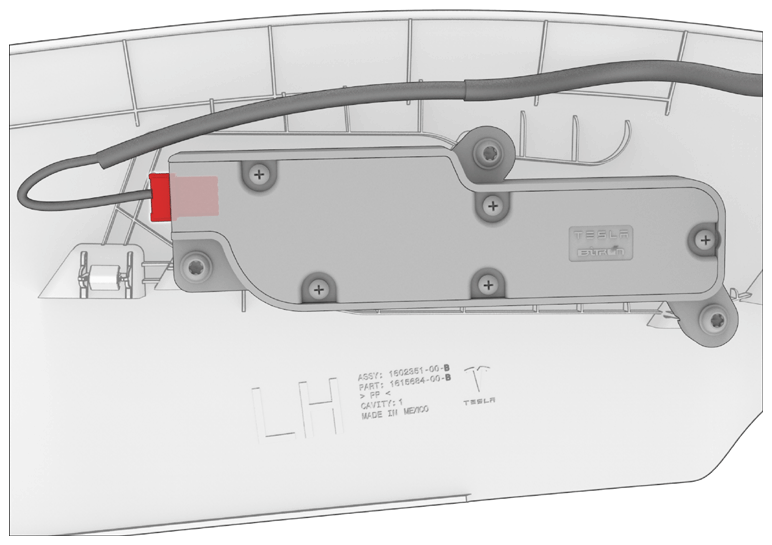

  5. Disconnect the electrical harness from the seat switch.
    G15082929Courtesy of TESLA, INC.
  6. Remove the front seat side shield LH carrier from the driver seat.
  7. Remove the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove And Replace) .
  8. Remove the front seat side shield RH carrier from the driver seat. See Carrier - RH - Side Shield - Inboard - Front Seat (Remove And Replace)

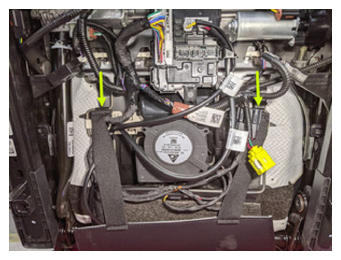

  9. Release the seat back elastic straps (x2) from the seat frame.
    G15082930Courtesy of TESLA, INC.

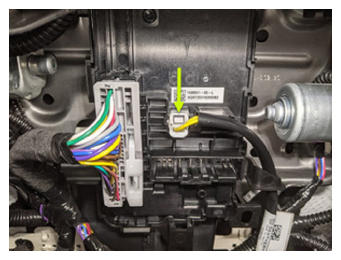

  10. Disconnect the FSB vent heat pad electrical connector from the driver seat controller.
    G15082931Courtesy of TESLA, INC.

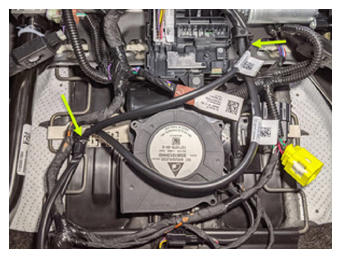

  11. Release the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly, and then remove the harnesses from the assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15082932Courtesy of TESLA, INC.
  12. Remove the driver seat headrest. See Trim - Headrest - Driver (Remove And Replace) .
  13. Remove the driver seat back shell. See Shell - Seat Back - Driver (Remove And Replace) .

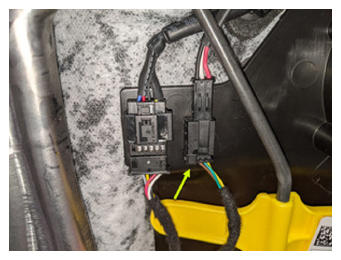

  14. Disconnect the fan controller electrical connector from the seat harness.
    G15082933Courtesy of TESLA, INC.

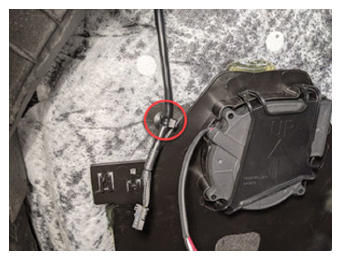

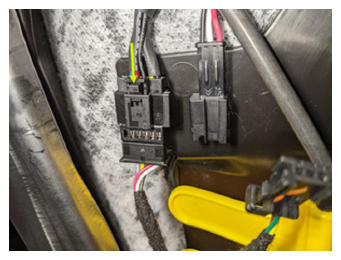

  15. Disconnect the driver seat microphone electrical connector, and then release clip that attaches the harness to the driver seat back rest foam.
    G15082934Courtesy of TESLA, INC.
    G15082935Courtesy of TESLA, INC.

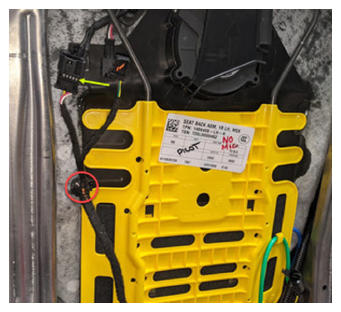

  16. Release the female side of the microphone connector and harness clips (x2) from the seat back suspension.
    G15082936Courtesy of TESLA, INC.
  17. Release the trim strap, and then release the trim retainers (x6) that attach the seat back trim retainers to the seat back frame.
    G15082937Courtesy of TESLA, INC.

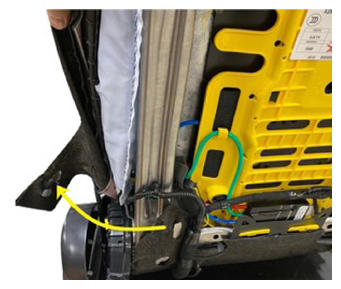

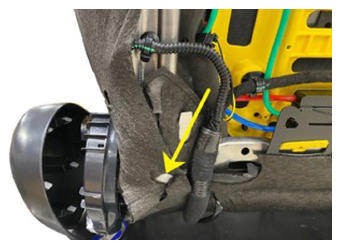

  18. Carefully release the driver seat cover from the driver seat, and then set the cover aside for access.
    G15082938Courtesy of TESLA, INC.
    G15082939Courtesy of TESLA, INC.

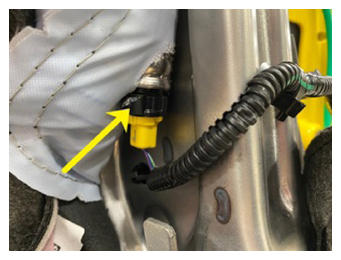

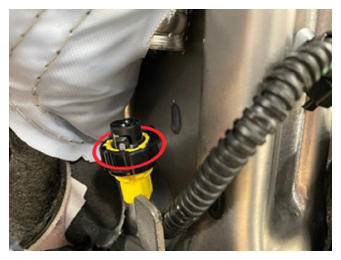

  19. Push down on the tab to release the driver seat side air bag electrical connector, and then disconnect the connector.
    G15082940Courtesy of TESLA, INC.
    G15082941Courtesy of TESLA, INC.

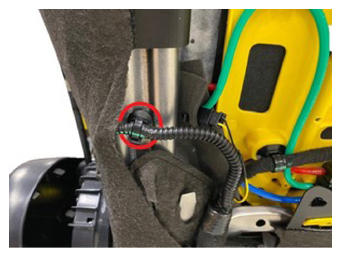

  20. Release the clip that attaches the driver seat side air bag harness to the driver seat, seat frame.
    G15082942Courtesy of TESLA, INC.

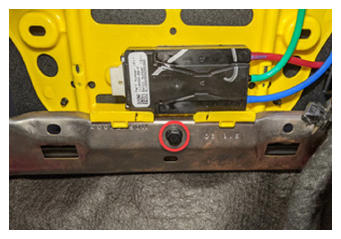

  21. Remove the bolt that attaches the driver seat backrest lumbar support to the seat back frame.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15082943Courtesy of TESLA, INC.

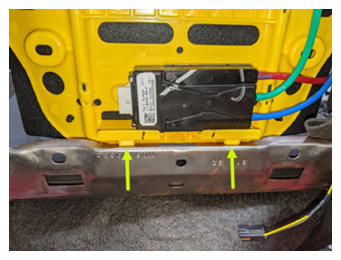

  22. Release the tabs (x2) that attach the lower portion of the driver seat backrest lumbar support to the seat back frame.
    G15082944Courtesy of TESLA, INC.

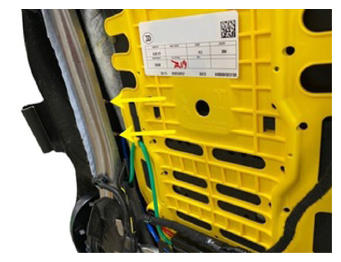

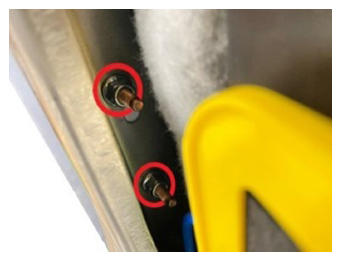

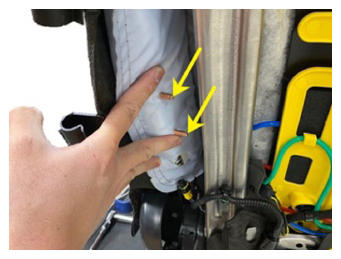

  23. Carefully pull the seat cover and foam assembly away from the frame, and then remove and discard the nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15082945Courtesy of TESLA, INC.
    G15082946Courtesy of TESLA, INC.
    G15082947Courtesy of TESLA, INC.

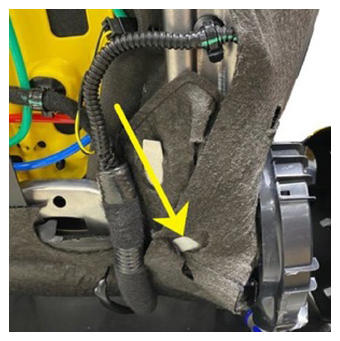

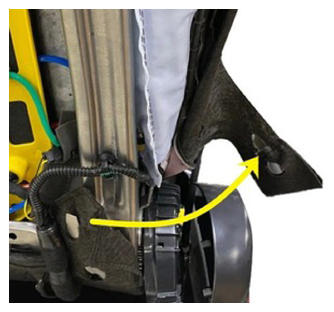

  24. Release the RH side of the driver seat back trim assembly, and then move the trim aside for access.
    G15082948Courtesy of TESLA, INC.
    G15082949Courtesy of TESLA, INC.

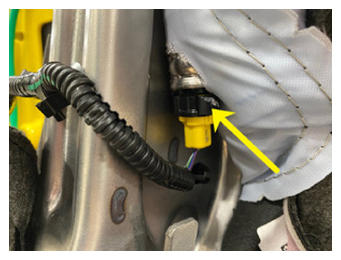

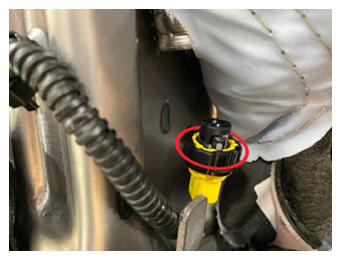

  25. Push down on the tab to release the driver seat inboard side air bag electrical connector, and then disconnect the connector.
    G15082950Courtesy of TESLA, INC.
    G15082951Courtesy of TESLA, INC.

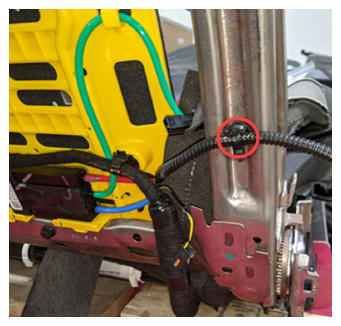

  26. Release the clip that attaches the driver seat harness to the RH side of seat back frame.
    G15082952Courtesy of TESLA, INC.

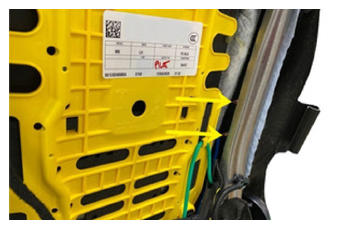

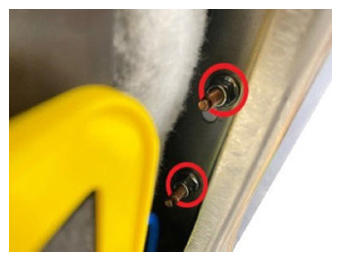

  27. Carefully pull the seat cover and foam assembly away from the frame, and then remove and discard the nuts (x2) that attach the driver seat inboard side air bag to the seat back frame assembly.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15082953Courtesy of TESLA, INC.
    G15082954Courtesy of TESLA, INC.
  28. With assistance, remove the driver seat back trim assembly from the seat frame.
    G15082955Courtesy of TESLA, INC.
    G15082956Courtesy of TESLA, INC.

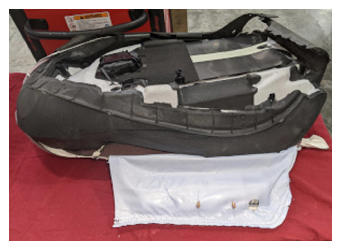

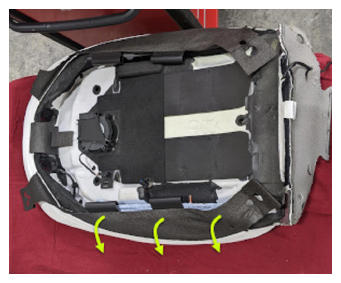

  29. Unfold the seat back trim from the LH side bolster, and then carefully remove the air bag chute from the LH side of the seat back foam.
    G15082957Courtesy of TESLA, INC.
    G15082958Courtesy of TESLA, INC.

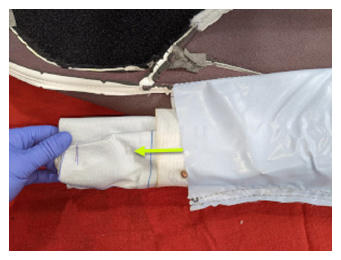

  30. Carefully remove the airbag from the airbag chute.
    CAUTION: Make sure that the driver side airbag mounting studs do not catch in the holes of the airbag chute.
    CAUTION: Handle the airbag with extreme care when removing it from the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
    G15082959Courtesy of TESLA, INC.

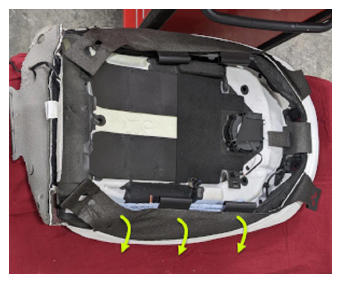

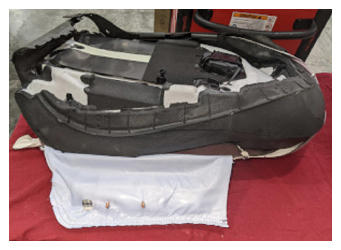

  31. Unfold the seat back trim from the RH side bolster, and then carefully remove the air bag chute from the RH side of the seat back foam.
    G15082960Courtesy of TESLA, INC.
    G15082961Courtesy of TESLA, INC.

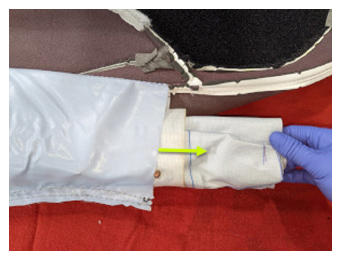

  32. Carefully remove the airbag from the airbag chute.
    CAUTION: Make sure that the driver inboard side airbag mounting studs do not catch in the holes of the airbag chute.
    CAUTION: Handle the airbag with extreme care when removing it from the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
    G15082962Courtesy of TESLA, INC.

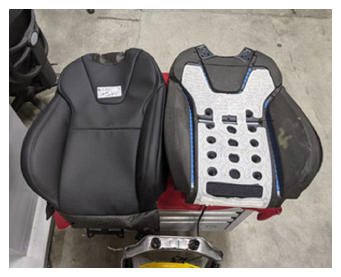

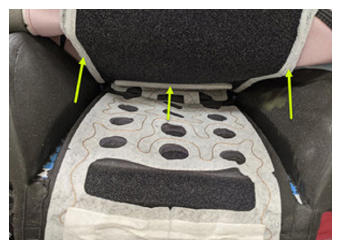

  33. Release the Velcro strips (x4) that attach the driver seat back rest trim to the seat back rest foam, and then remove the trim from the assembly.
    G15082963Courtesy of TESLA, INC.
    G15082964Courtesy of TESLA, INC.
    G15082965Courtesy of TESLA, INC.
