Back Panel -- 2nd Row Seat -- RH - Remove And Replace: Remove

  1. Fold the RH 2nd row seat to the down position.
    NOTE: If seat cushion is not present, protect the seat as required.

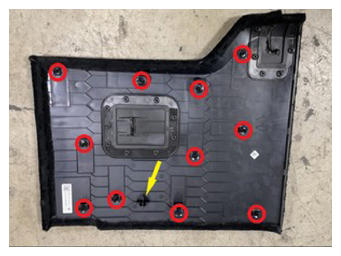

  2. Release the clips (x11) and fastener that attach the RH 2nd row seat back panel to the seat assembly, and then remove the back panel from the vehicle.
    G15083258Courtesy of TESLA, INC.
    G15083259Courtesy of TESLA, INC.
