Substrate - Bolster - Inner - 2nd Row - LH - Remove And Replace: Remove

Remove the LH 2nd row seat back panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .

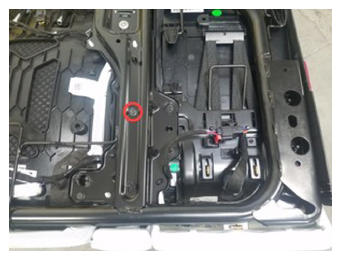

Remove the bolt that attaches the LH 2nd row bolster assembly to the back frame.
8 N.m (5.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

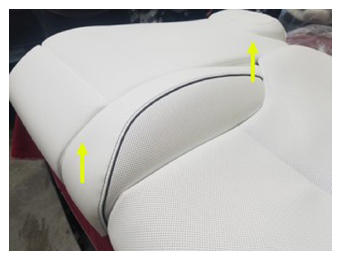

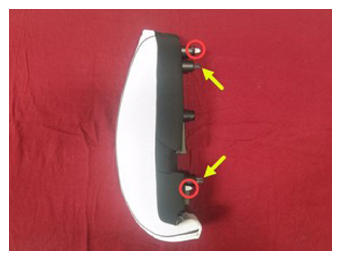

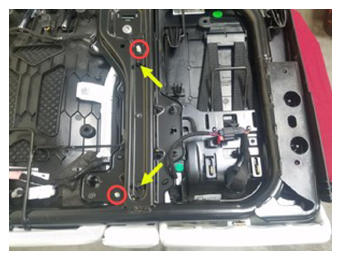

Release the fasteners that attach the LH 2nd row bolster assembly to the seat assembly, and then remove the bolster assembly from the seat.
NOTE: Lightly squeeze the clips to release the sub-bolster.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

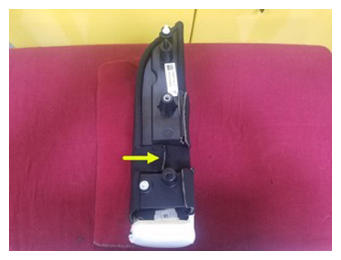

Release the Velcro that attaches the LH 2nd row bolster trim to the LH 2nd row seat inner bolster substrate.

Courtesy of TESLA, INC.

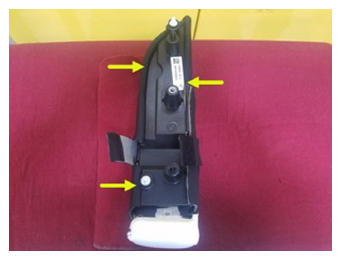

Release the clips (x3) that attach the LH 2nd row bolster trim to the LH 2nd row seat inner bolster substrate.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

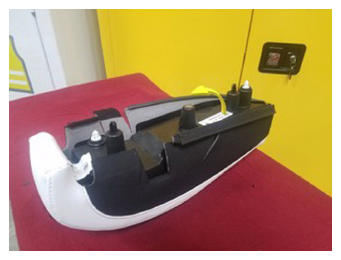

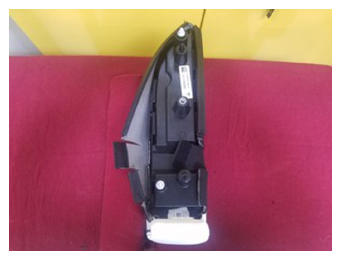

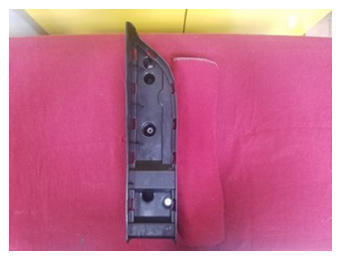

Remove the LH 2nd row seat inner bolster substrate from the bolster assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
