Collar - Static - Pivot - 2nd Row - RH - Remove And Replace: Remove

  1. Remove the RH 2nd row seat back from the vehicle. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .
  2. Remove the RH 2nd row seat back pivot bushing. See PIVOT BUSHING - SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .

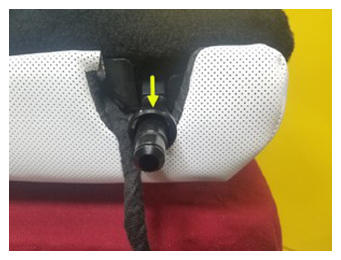

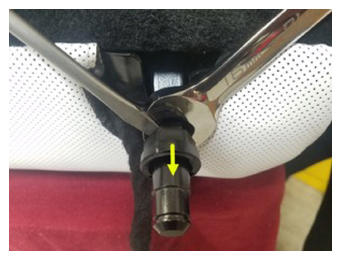

  3. Use a combination wrench to hold the pivot pin in place, and then use a screwdriver to pry the RH 2nd row pivot static collar off the assembly.

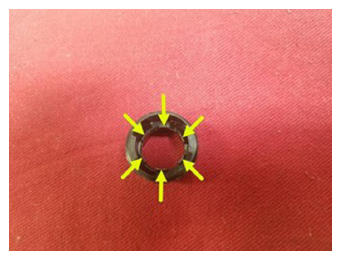

    NOTE: The tabs (x6) may break during removal so the static collar cannot be reused.
    G15082345Courtesy of TESLA, INC.
    G15082346Courtesy of TESLA, INC.
    G15082347Courtesy of TESLA, INC.
