Collar - Static - Pivot - 2nd Row - LH - Remove And Replace: Install

  1. Install a new LH 2nd row pivot static collar.

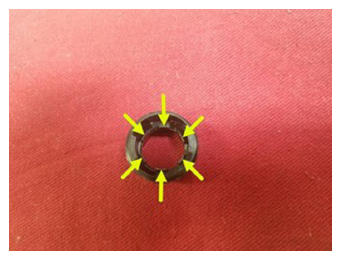

    NOTE: Ensure the tabs (x6) are fully seated.
    G15082342Courtesy of TESLA, INC.

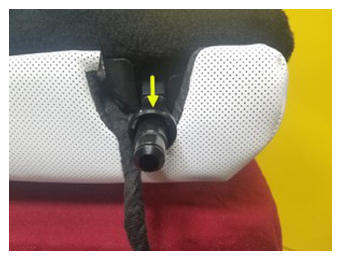

    G15082343Courtesy of TESLA, INC.
  2. Install the LH 2nd row seat back pivot bushing. See PIVOT BUSHING - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Install the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove And Replace) .
