Bun - Armrest - 2nd Row - Remove And Replace: Install

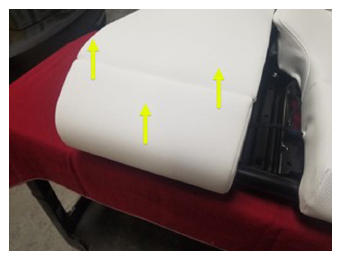

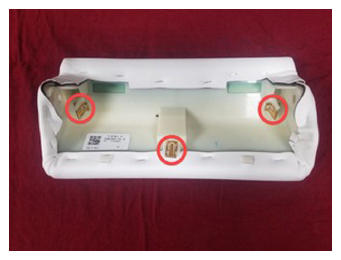

- Install the clips (x3) that attach the 2nd row armrest bun to the seat back assembly.

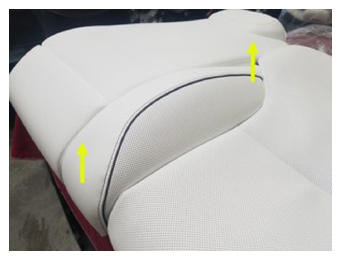

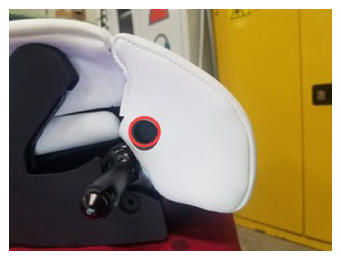

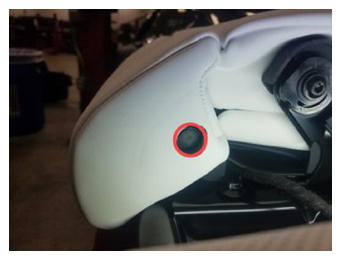

- Install the clips (x2) that attach the 2nd row armrest bun to the seat assembly.

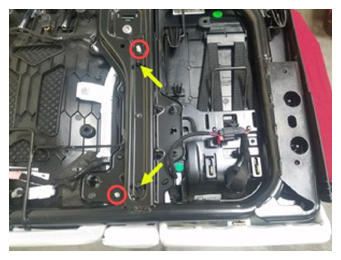

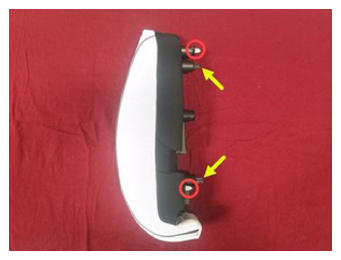

- Install the clips (x2) that attach the LH 2nd row bolster assembly to the seat assembly.
- Position the seat back assembly upside down on the padded workbench.

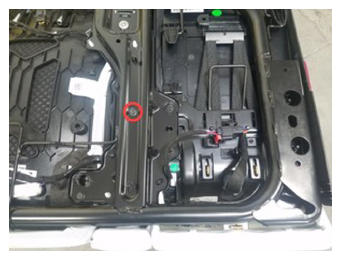

- Install the bolt that attaches the LH 2nd row seat bolster assembly to the back frame.
8 N.m (5.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Install the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove And Replace)
- Install the LH 2nd row back seat panel. See Back Panel - 2nd Row Seat - LH (Remove And Replace) .
