Pump - Windshield Washer Reservoir - Remove And Replace: Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  2. Remove the LH front wheel. See Wheel (Remove and Install) .

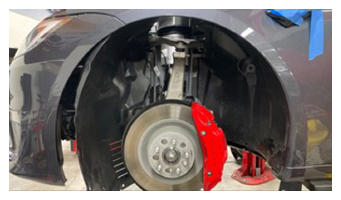

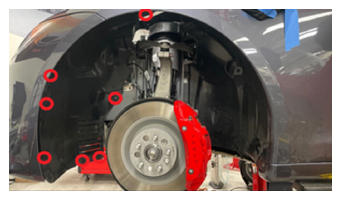

  3. Release the clips (x7) that attach the front portion of the LH front wheel house liner to the vehicle.
    G15092966Courtesy of TESLA, INC.
    G15092967Courtesy of TESLA, INC.

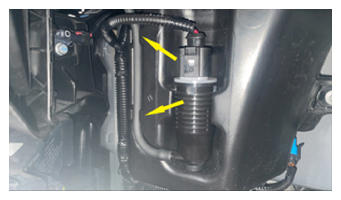

  4. Release the tabs (x2) that attach the washer hose to the reservoir.
    G15092968Courtesy of TESLA, INC.

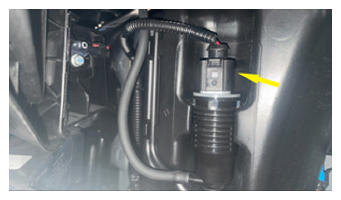

  5. Disconnect the washer pump electrical connector.
    G15092969Courtesy of TESLA, INC.

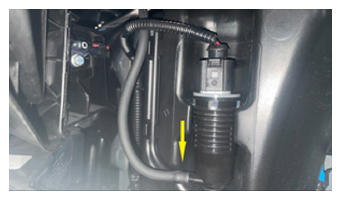

  6. Disconnect the washer hose from the washer pump.
    CAUTION: Carefully separate the hose from washer pump to not damage the washer pump.
    G15092970Courtesy of TESLA, INC.

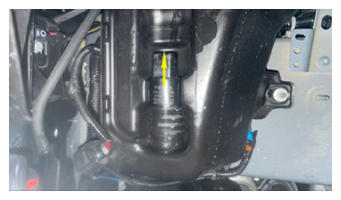

  7. Pull the washer pump in an upwards direction and allow the washer tank to drain.
    G15092971Courtesy of TESLA, INC.

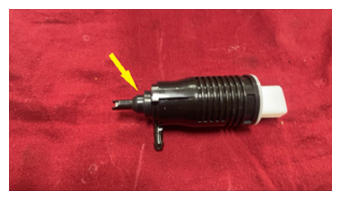

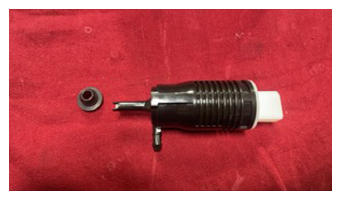

  8. Remove the washer pump grommet from the washer pump. Inspect the washer pump grommet for damage. If any damage is found, then replace the grommet.
    G15092972Courtesy of TESLA, INC.
    G15092973Courtesy of TESLA, INC.
