12V Power Socket - Center Console - Remove And Replace: Install

  1. Position the center console 12V power socket onto the center console service panel assembly.
    NOTE: Use the alignment tabs to ensure the power socket is correctly positioned.

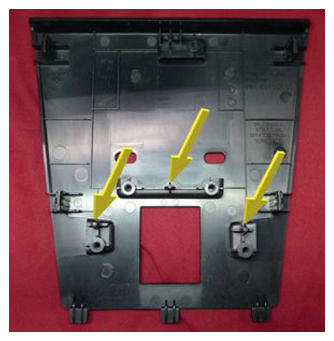

    G15092100Courtesy of TESLA, INC.

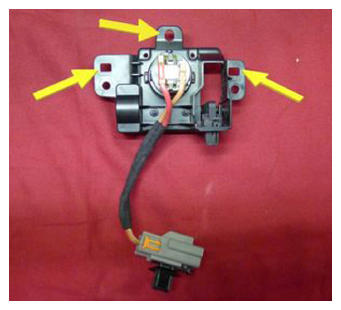

    G15092101Courtesy of TESLA, INC.
  2. Install the screws (x2) that attach the center console 12V power socket to the service panel assembly.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket

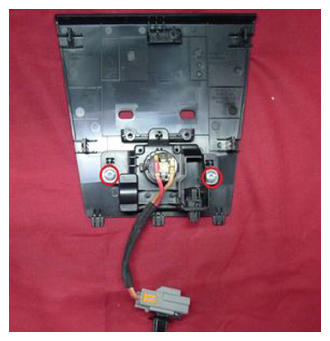

    G15092102Courtesy of TESLA, INC.
  3. Install the front center console USB hub. See USB Hub - Center Console - Front (Remove and Replace) .
