Switch - Hazard - Center Console - Remove And Replace: Install

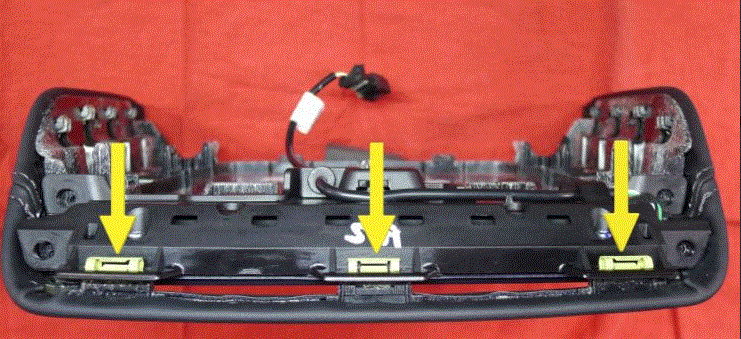

Position the center console hazard switch into the phone dock assembly, and then fasten the clips (x3) that attach the switch to the assembly.

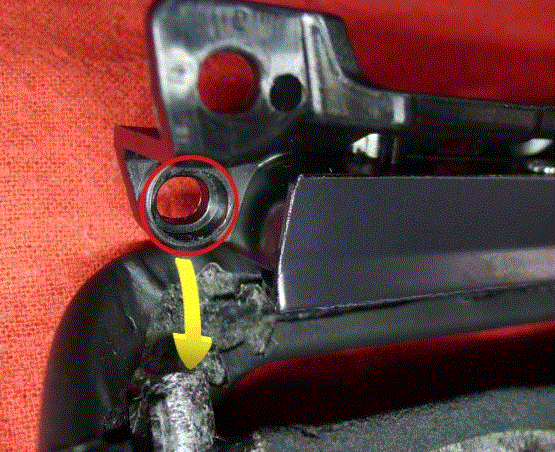

NOTE: Rotate the hazard button into the phone dock by aligning the datums, and then fasten the clips (x3).

Courtesy of TESLA INC

Courtesy of TESLA INC

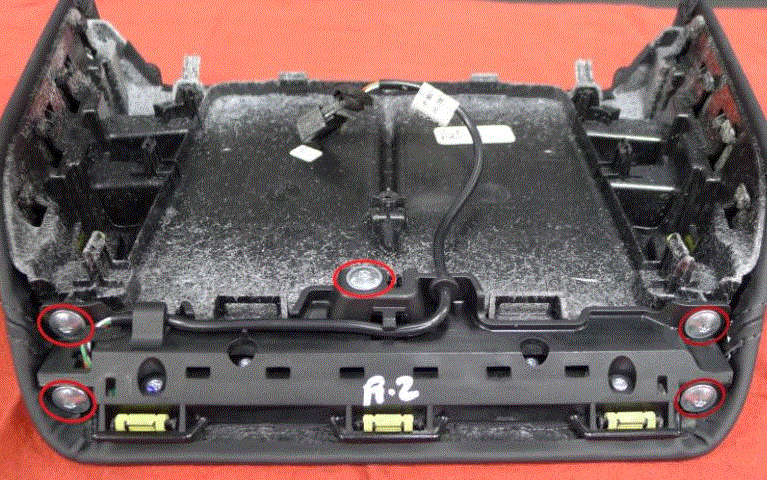

Install the screws (x5) that attach the hazard switch to the phone dock assembly.
1.2 Nm (.9 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
NOTE: Inspect the front of the phone dock to ensure that the hazard button module is flush to the phone dock.

Courtesy of TESLA INC
Install the phone dock assembly into the center console. See PHONE DOCK - CENTER CONSOLE - REMOVE AND REPLACE .
Raise the RH front window and close the RH front door.
