Trim - C-Pillar - Mid - LH - Remove And Replace: Install

  1. Position the LH mid C-pillar trim onto the LH C-pillar, and then fasten the clips (x3) that attach the trim to the vehicle.

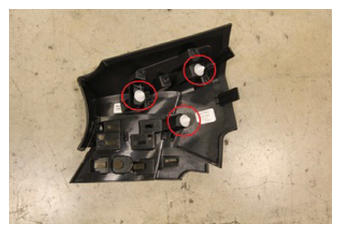

    G15084481Courtesy of TESLA, INC.

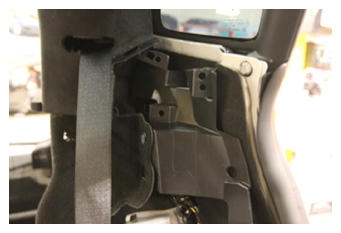

    G15084482Courtesy of TESLA, INC.

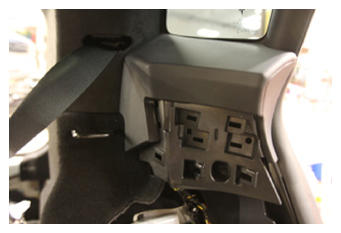

    G15084483Courtesy of TESLA, INC.
  2. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove And Replace) .
  3. Fold the LH 2nd row seat to the up position.
    NOTE: Remove the seat cushion protection.
  4. Install 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  5. Install LH and RH side bolster trims. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
