Trim - B-Pillar - Lower - LH - Remove And Replace: Install

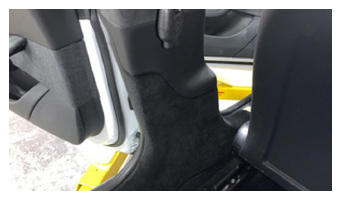

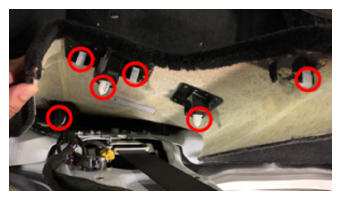

  1. Position the LH lower B-pillar trim to the B-pillar, and then install the clips (x6) that attach the trim the vehicle.
    NOTE: Align datums, and then engage all the clips. Replace damaged or missing clips as necessary.
    G15084461Courtesy of TESLA, INC.
    G15084462Courtesy of TESLA, INC.
    G15084463Courtesy of TESLA, INC.
  2. Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove And Replace) .
  3. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove And Replace) .
  4. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove And Replace) .
  5. Fold the LH 2nd row seat to the up position.
    NOTE: Remove the seat cushion protection.
  6. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  7. Install the LH and RH side bolster trims. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  8. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
  9. Raise all the windows and close all the doors.
