Trim - Side - Trunk - RH - Remove And Replace: Install

  1. Position the RH trunk side trim on the vehicle.

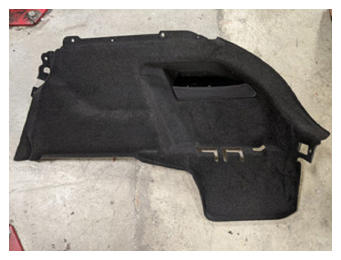

    G15084802Courtesy of TESLA, INC.
  2. Connect the electrical connector on the RH trunk side trim, and then install the clips (x3) that attach the trim to the vehicle.

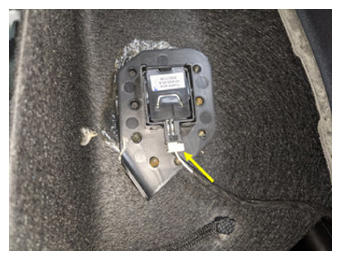

    G15084803Courtesy of TESLA, INC.

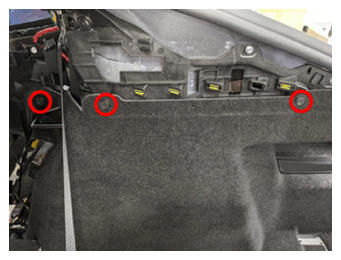

    G15084804Courtesy of TESLA, INC.
  3. Position the RH upper C-pillar trim on the vehicle, and then install the clips (x7) that attach the trim to the vehicle.

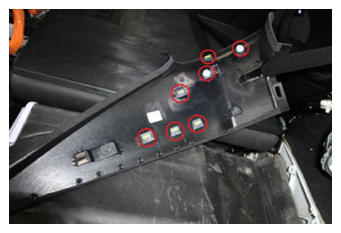

    G15084805Courtesy of TESLA, INC.

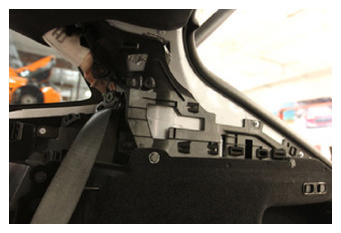

    G15084806Courtesy of TESLA, INC.

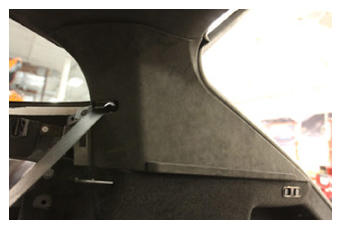

    G15084807Courtesy of TESLA, INC.
  4. Install the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove And Replace) .
  5. Install the clips (x4) and tab that attach the RH lower C-pillar trim to the RH middle C-pillar trim.

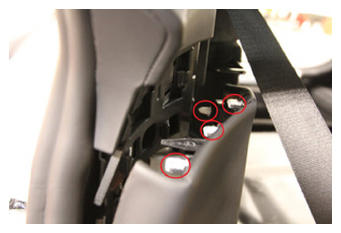

    G15084808Courtesy of TESLA, INC.
  6. Install the RH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  7. Install the rear wall rear trunk trim. See Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  8. Install the trunk floor front trim. See Trim - Front - Floor - Trunk (Remove And Replace) .
  9. Install the RH trunk load floor bracket. See Bracket - Trunk Load Floor - LH (Remove And Replace) .
  10. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove And Replace) .
  11. Install the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove And Replace) .
  12. Restore the RH 2nd row seat to the upright position.
