Panel - Footrest - Front Passenger (LHD) - Remove And Replace: Remove

  1. Open the RH front door and lower the RH front window.
  2. Move the front passenger seat fully rearwards.
  3. Remove the RH front floor mat.
  4. Remove the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace) .
  5. Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove And Replace) .
  6. Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove And Replace) .
  7. Fold the RH front cabin carpet aside for access.
    G15085760Courtesy of TESLA, INC.
  8. Remove the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove And Replace) .

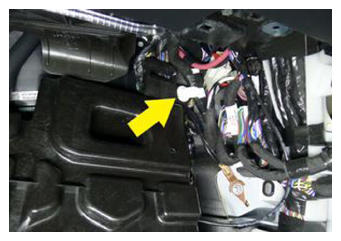

  9. Release the clip that attaches the electrical harness to the front passenger footrest panel.
    G15085761Courtesy of TESLA, INC.
  10. Remove the bolts (x2) and nut that attach the front passenger footrest panel to the body, and then remove the panel from the vehicle.

    5 N.m (3.7 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15085762Courtesy of TESLA, INC.
    G15085763Courtesy of TESLA, INC.
