Panel - Footrest - Front Passenger (LHD) - Remove And Replace: Install

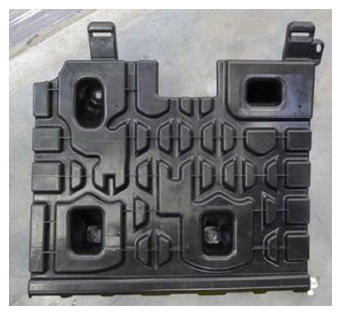

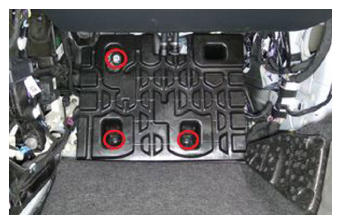

- Put the front passenger footrest panel in position, and then install the bolts (x2) and nut that attach the panel to the body,
5 N.m (3.7 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

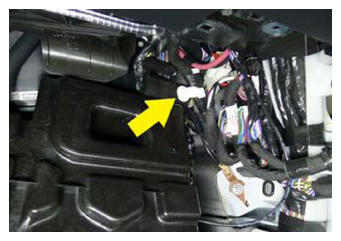

- Fasten the clip that attaches the electrical harness to the front passenger footrest panel.

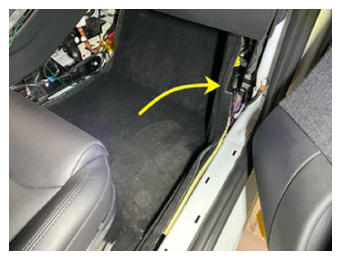

- Fold the RH main carpet back into place.
- Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove And Replace) .
- Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove And Replace) .
- Install the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove And Replace) .
- Install the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace) .
- Install the RH front floor mat.
- Restore the front passenger seat back to its original position.
- Raise the RH front window and close the RH front door.
