Panel - Cowl Screen - Remove And Replace: Install

  1. Secure the end tabs (x2), and then install the clips (x4) that attach the cowl screen panel to the vehicle.

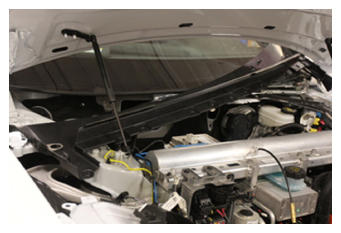

    G15081394Courtesy of TESLA, INC.

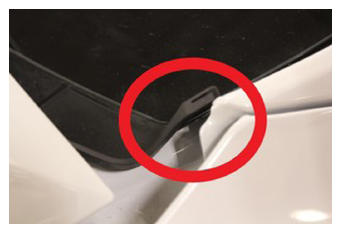

    G15081395Courtesy of TESLA, INC.

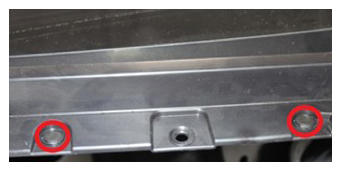

    G15081396Courtesy of TESLA, INC.

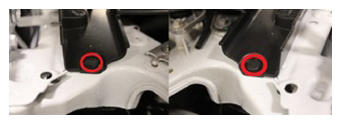

    G15081397Courtesy of TESLA, INC.
  2. Install the LH and RH wiper arms. See Wiper Arm - LH (Remove and Replace) .
  3. Install the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove And Replace) .
  4. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove And Replace) .
  5. Install the rear underhood apron. See Underhood Apron - Rear (Remove And Replace) .
