Assembly - Trailer Hitch Remove and Replace: Install
- Position the trailer hitch assembly on the vehicle, and then install the nuts (x4) that attach the hitch assembly to the body studs.
60 Nm (44.2 lbs-ft)
NOTE: The new trailer hitch assembly comes equipped with an ECU and jumper harness.- 15 mm deep socket
- Ratchet/torque wrench
- 3 in extension
Tip: Use of the following tool(s) is recommended: Pocket screwdriver
- Install the clip that attaches the LH body harness to the trailer hitch assembly.

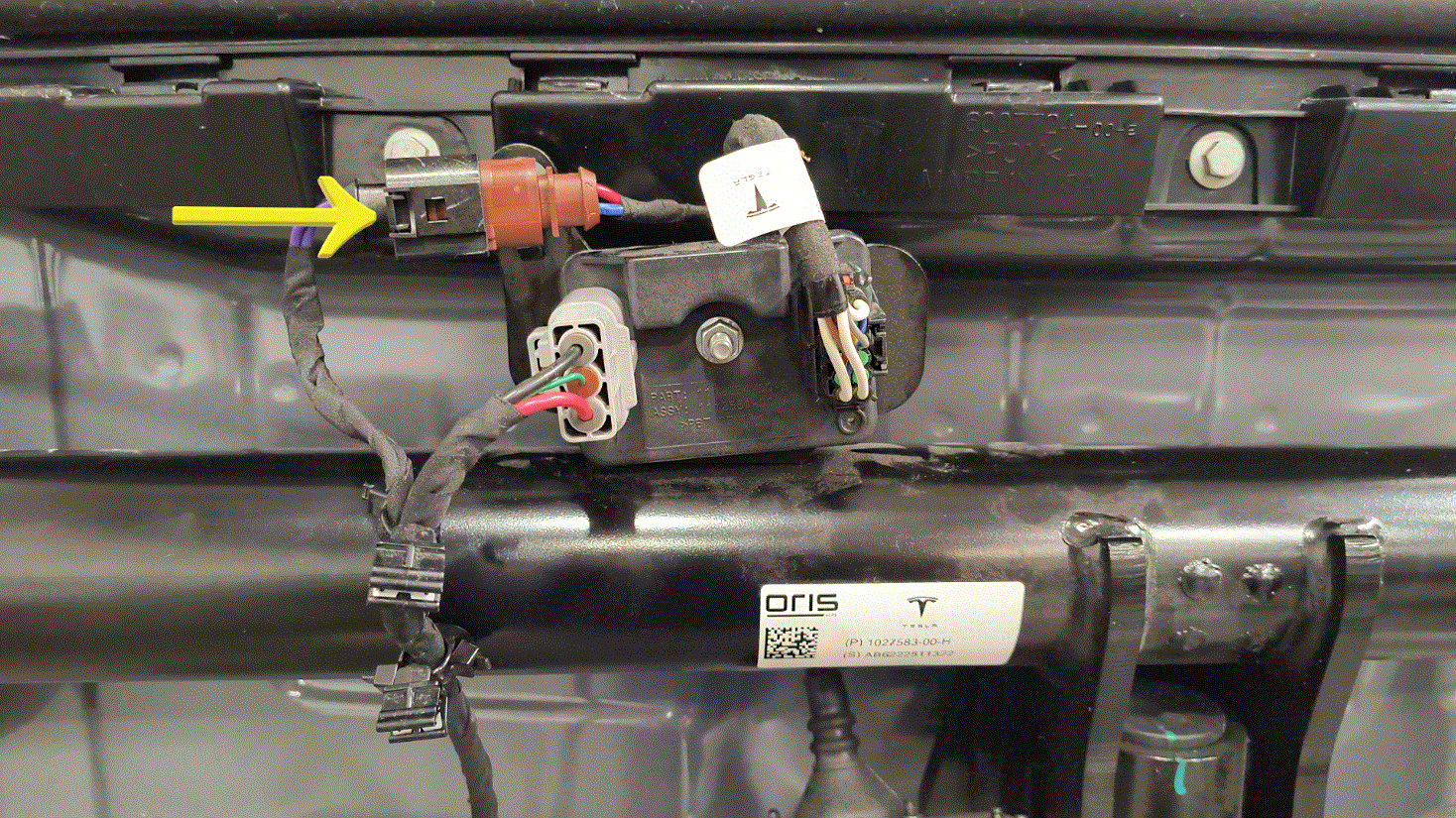

- Connect the LH body harness connector to the trailer hitch assembly ECU.
- Connect the LH body harness connector to the trailer hitch assembly jumper harness.
- Install the rear fascia assembly. See Fascia Assembly - Rear - Remove And Install .
