Overslam - Liftgate - LH - Remove And Replace: Install

  1. Install the LH liftgate overslam into the liftgate assembly.

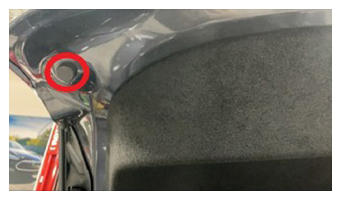

    G15079589Courtesy of TESLA, INC.
  2. Close the liftgate.
  3. Check for gap/flushness between liftgate and surrounding panels.
    NOTE: Measure 10x points labeled in image. Refer to CVIS for current specification targets.

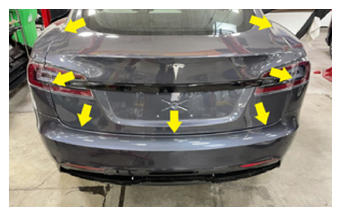

    G15079590Courtesy of TESLA, INC.
  4. Open the liftgate.
  5. Adjust the liftgate overslam to achieve flushness target.
    NOTE: Rotate the overslam clockwise to decrease bumper height or counter-clockwise to increase bumper height as required to achieve flushness target.
  6. Close the liftgate.
