Bumper Beam - Front - Remove And Replace: Remove

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove And Install) .
  2. Use right-angle needle nose pliers, in conjunction with a large wrench or pliers to act as a fulcrum, to pry out the clips (x4) that attach the bumper beam foam to the bumper beam.
    WARNING: Use caution to avoid personal injury. Do not apply pressure to the foam.

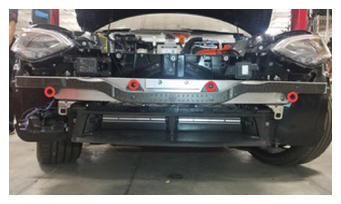

    G15077154Courtesy of TESLA, INC.

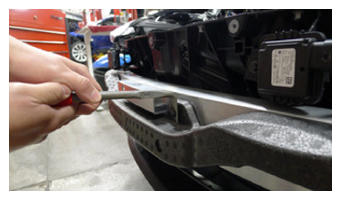

    G15077155Courtesy of TESLA, INC.

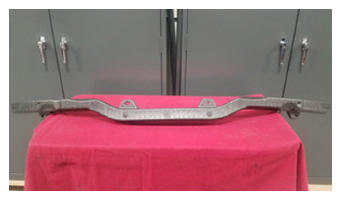

    G15077156Courtesy of TESLA, INC.

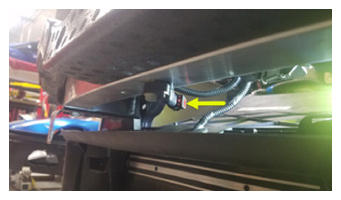

  3. Disconnect the front bumper accelerator sensor electrical connector.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15077157Courtesy of TESLA, INC.

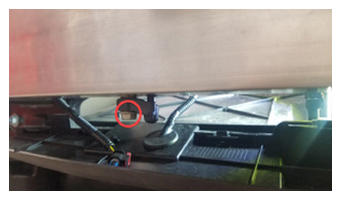

  4. Remove the bolt that attaches the front bumper accelerator sensor to the vehicle, and then remove the sensor from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    G15077158Courtesy of TESLA, INC.

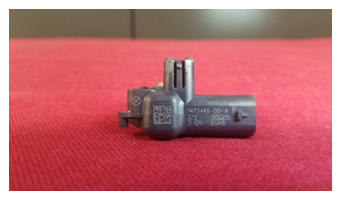

    G15077159Courtesy of TESLA, INC.

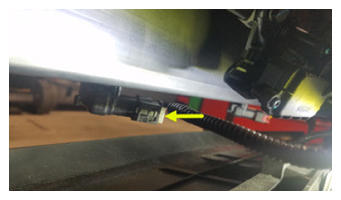

  5. Disconnect the front shotguns accelerator sensor electrical connector.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15077160Courtesy of TESLA, INC.

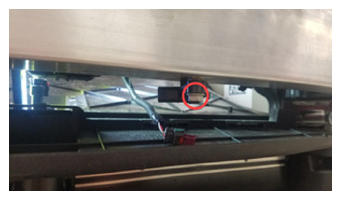

  6. Remove the bolt that attaches the front shotguns accelerator sensor to the vehicle, and then remove the sensor from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    G15077161Courtesy of TESLA, INC.

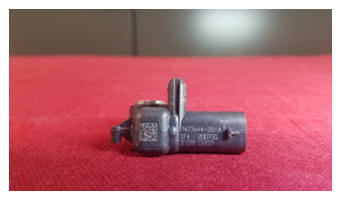

    G15077162Courtesy of TESLA, INC.

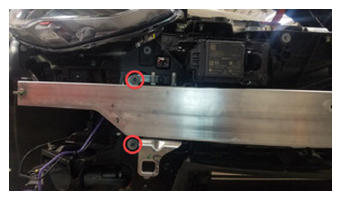

  7. Remove the front nuts that attach the front bumper beam to the carrier.

    Tip: Use of the following tool(s) is recommended:

    • 15 mm deep socket
    • Flex head ratchet/flex head torque wrench
    • 3 in extension
    G15077163Courtesy of TESLA, INC.
    G15077164Courtesy of TESLA, INC.

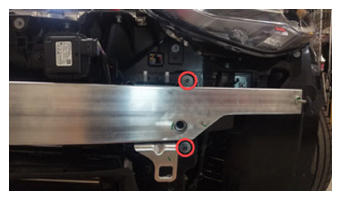

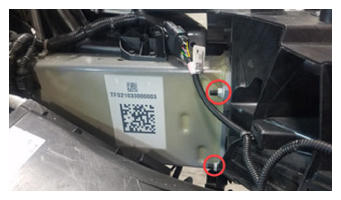

  8. Remove rear nuts that attach the front bumper beam to carrier.
    CAUTION: Be careful not to damage the active shutter.

    Tip: Use of the following tool(s) is recommended:

    • 15 mm deep socket
    • Flex head ratchet/flex head torque wrench
    • 3 in extension

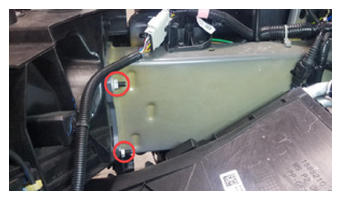

    G15077165Courtesy of TESLA, INC.
    G15077166Courtesy of TESLA, INC.

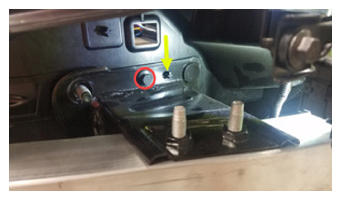

  9. Remove the bolts that attach the front bumper beam to the vehicle, and then remove the assembly from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • 6 in extension
    G15077167Courtesy of TESLA, INC.

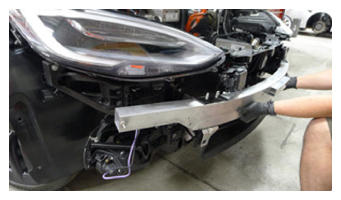

    G15077168Courtesy of TESLA, INC.

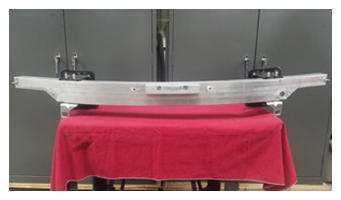

    G15077169Courtesy of TESLA, INC.
