Wiper Blades - Pair - Remove And Replace: Remove

  1. Use the touchscreen to put the wipers in "Wiper Service Mode".

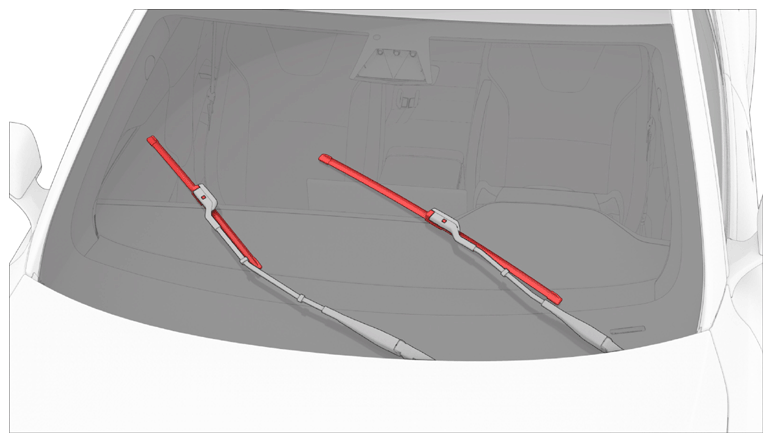

    G15093035Courtesy of TESLA, INC.
  2. Place a shop towel under the wiper arm to protect the windshield.
  3. Press the first tab located on either wiper blade and slide the wiper blade from the wiper arm until it stops.

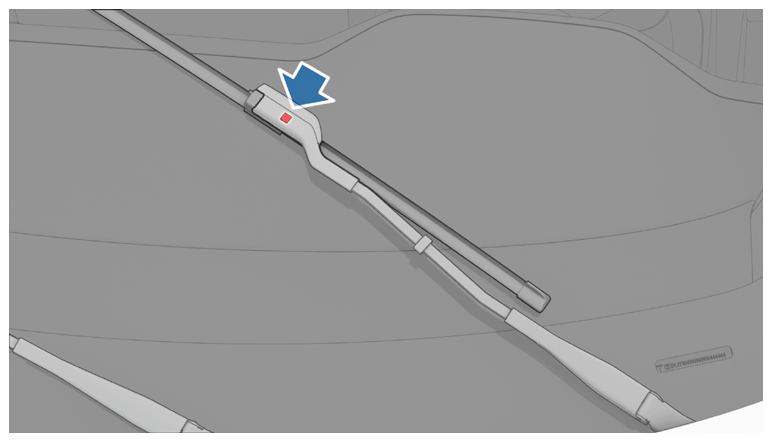

    G15093036Courtesy of TESLA, INC.
  4. Press the second tab on the wiper blade and slide out the blade to remove it from the wiper arm.

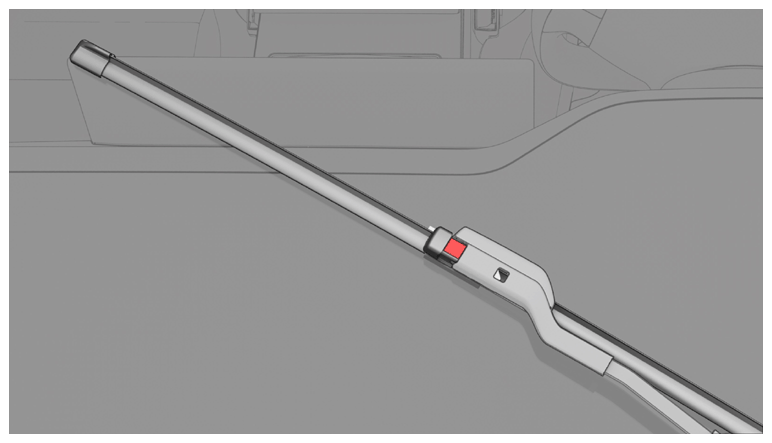

    G15093037Courtesy of TESLA, INC.
  5. Repeat steps  3 and  4 on the other wiper blade.
