Hose - Washer - Shock Tower - LH - Remove And Replace: Install

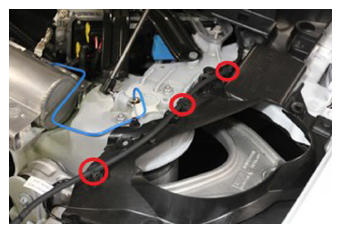

  1. Install the shock tower washer hose to the clips (x3) that attach the washer hose to the LH shock tower cover.
    G15092963Courtesy of TESLA, INC.

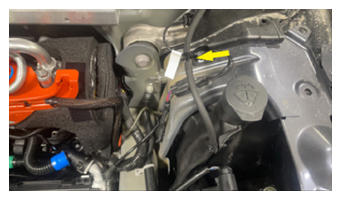

  2. Connect the shock tower hose to the washer tank hose
    G15092964Courtesy of TESLA, INC.
  3. Install the LH underhood apron. See Underhood Apron - LH (Remove and Replace) .
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
