Hose - Washer - Reservoir - Remove And Replace: Install

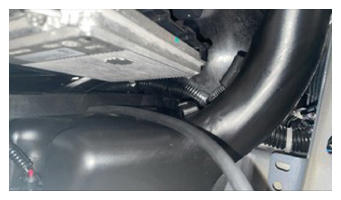

  1. Install the washer hose to the vehicle.
    G15092950Courtesy of TESLA, INC.

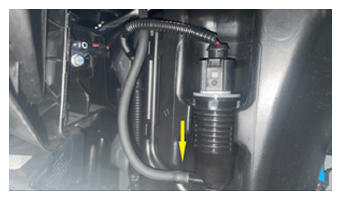

  2. Connect the washer hose to the washer pump.
    CAUTION: Be careful not to damage the washer pump when connecting the washer hose.
    G15092951Courtesy of TESLA, INC.

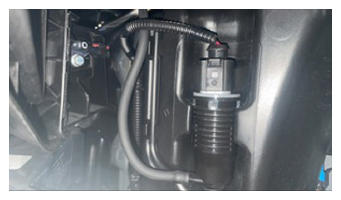

  3. Install the washer hose to the tabs (x2) on the reservoir.
    G15092952Courtesy of TESLA, INC.

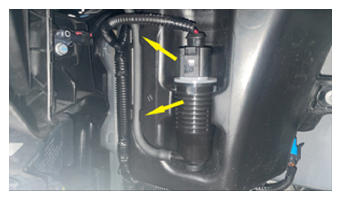

    G15092953Courtesy of TESLA, INC.

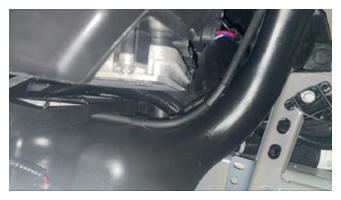

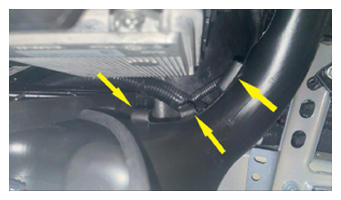

  4. Install the washer hose to the hooks (x3) on the reservoir.
    G15092954Courtesy of TESLA, INC.
    G15092955Courtesy of TESLA, INC.

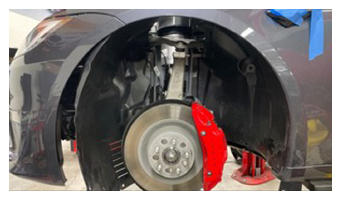

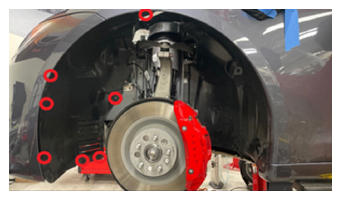

  5. Install the clips (x7) that attach the front portion of the LH front wheel house liner.
    G15092956Courtesy of TESLA, INC.
    G15092957Courtesy of TESLA, INC.
  6. Install the LH front wheel. See Wheel (Remove and Install) .
  7. Remove the vehicle from the lift.

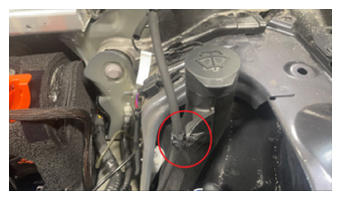

  8. Install the retainer clip to the washer bottle.
    G15092958Courtesy of TESLA, INC.

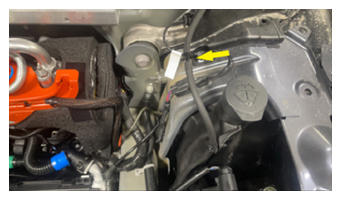

  9. Attach the shock tower hose to the washer tank hose.
    G15092959Courtesy of TESLA, INC.
  10. Install the LH underhood apron. See Underhood Apron - LH (Remove and Replace) .
  11. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
