Camera - Triple - Forward Facing - Remove And Replace: Remove

Open the LH front door and lower the LH front window.
Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .
Remove the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .

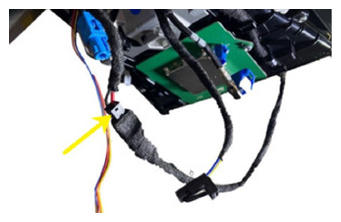

Disconnect the fan electrical connector.

Courtesy of TESLA, INC.

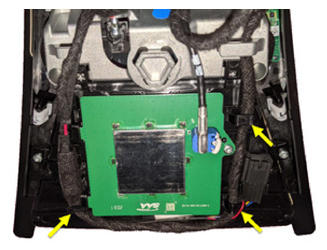

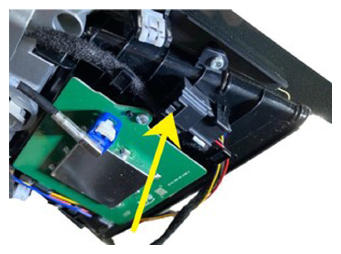

Disconnect the camera heater grid electrical connector, and then release the harness from the harness guides (x3).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

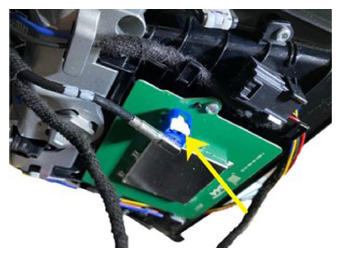

Disconnect the GPS/GNSS antenna electrical connector.

Courtesy of TESLA, INC.

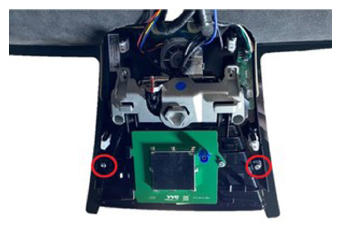

Remove the bolts (x2) that attach the glare shield assembly to the windshield.
1 N.m (.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T10 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

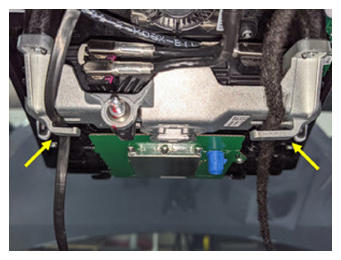

Release the harnesses (x2) from the triple camera mounting plate.

Courtesy of TESLA, INC.

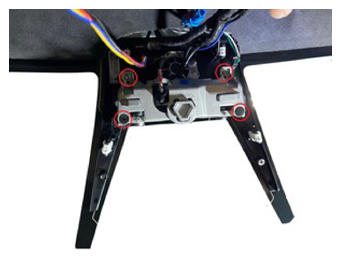

Remove the screws (x4) that attach the mounting plate to the windshield, and then allow the camera to hang by the harness.
0.8 N.m (7 in-lbs)

Tip: Use of the following tool(s) is recommended:
- T10 bit
Courtesy of TESLA, INC.

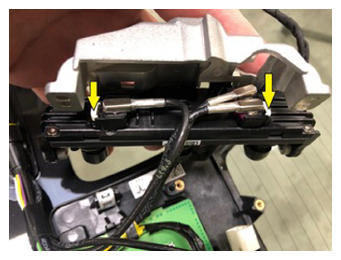

Disconnect the camera electrical connectors (x2), and then remove from the camera from the vehicle.

Courtesy of TESLA, INC.
