Carrier - Seal - Front - B-Pillar - LH - Remove And Replace: Remove

Open the LH doors and lower the LH windows.
Remove the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace) .

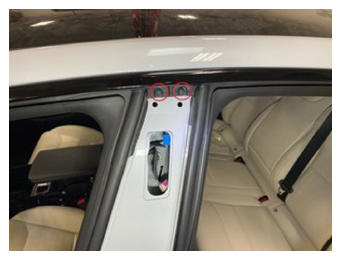

Remove the clips (x2) that attach the LH front body side primary seal to the B-Pillar panel.

Courtesy of TESLA, INC.

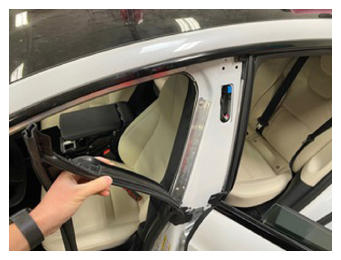

Release the LH front body side primary seal from the bright molding.

Courtesy of TESLA, INC.

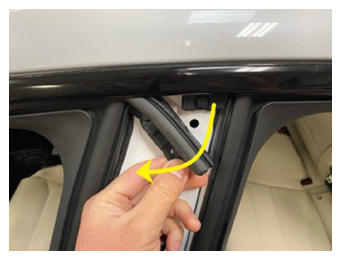

Release the rear portion of the LH front body side primary seal from the front upper body side B-pillar carrier.

Courtesy of TESLA, INC.

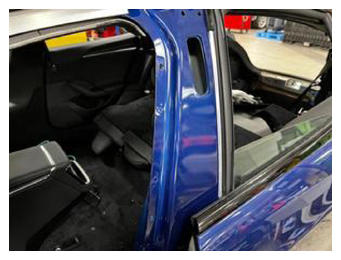

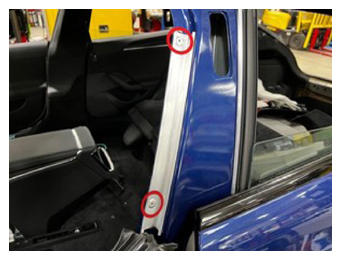

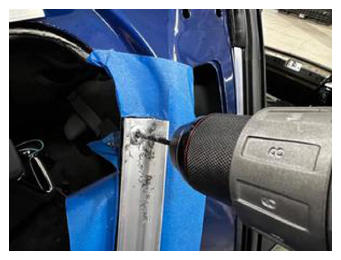

Drill out the rivets (x2) that secure the LH front upper body side B-Pillar carrier, and then remove the rivets from vehicle. Use a punch to remove the remaining portion of the rivets.
Tip: Use of the following tool(s) is recommended:
- 4.5 mm drill bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove any remaining debris from the B-pillar, and then use an IPA wipe to clean the body.
NOTE: Allow 1 minute for dry time.

Courtesy of TESLA, INC.
