Painted Bracket - Molding - License Plate - Front - Remove and Replace
Last modified: 24/08/2023 15:39:33
NOTE:
See Personal Protection
to make sure wearing proper PPE when performing the below procedure.
WARNING:
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

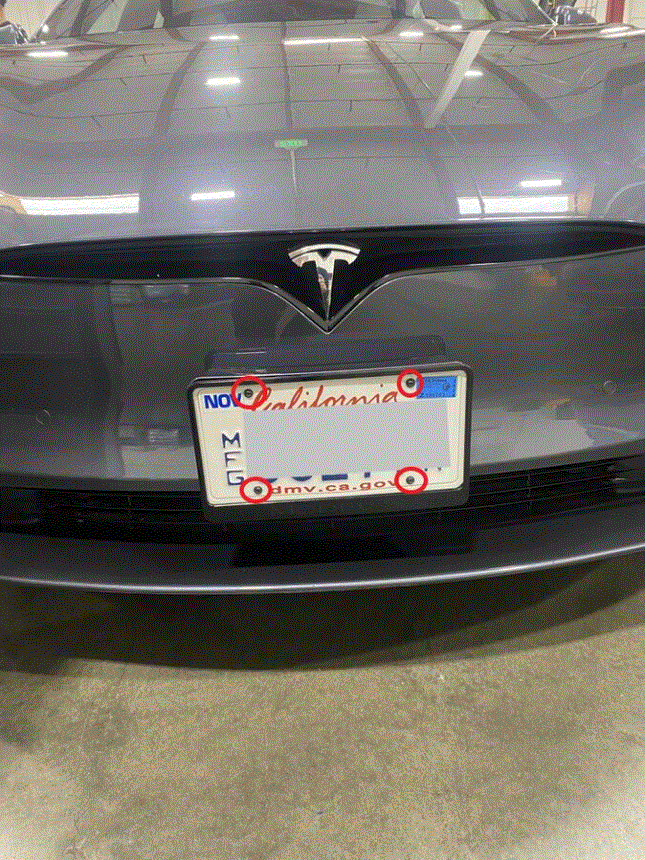

- Remove front license plate with decorative frame from original fasciaNOTE: 4x Screws, T20, 3 Nm

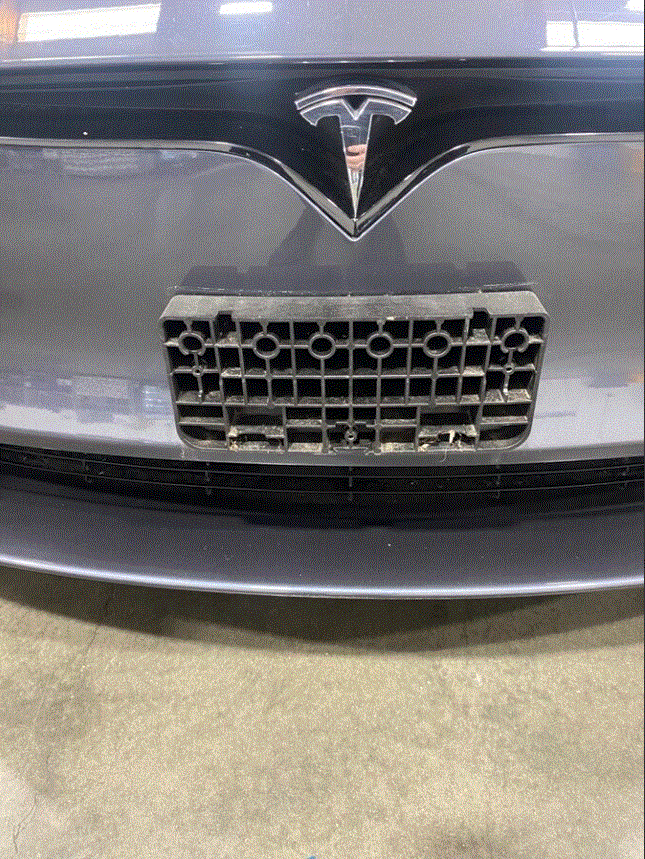

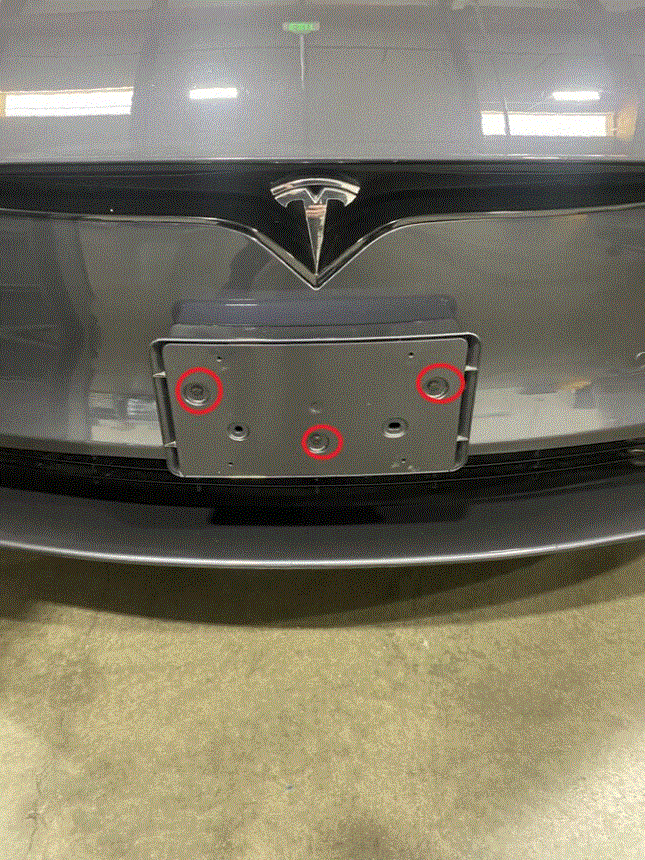

- Remove the front license plate molding painted bracket from the front fascia.NOTE: 3x Bolts, E10 5 Lobe, 1 Nm

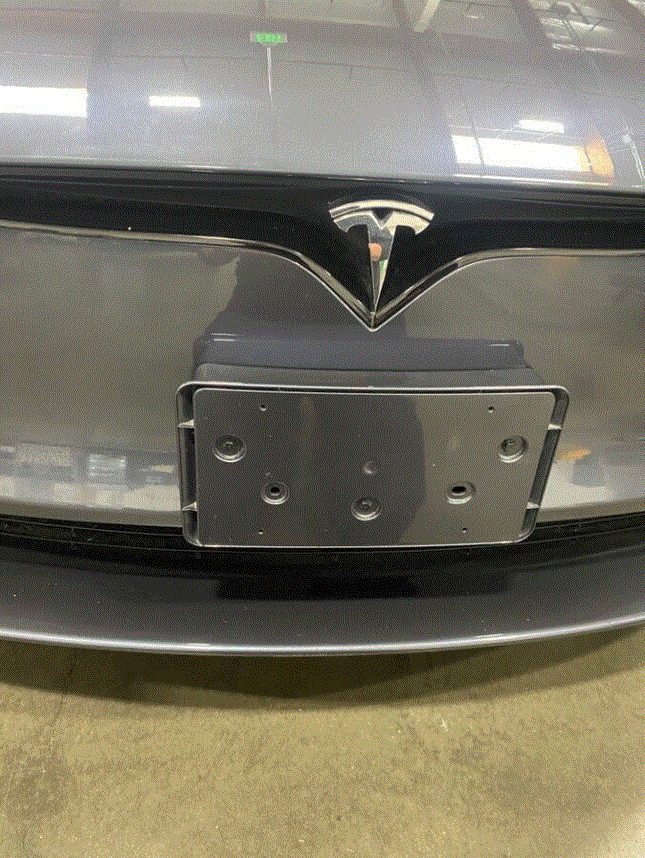

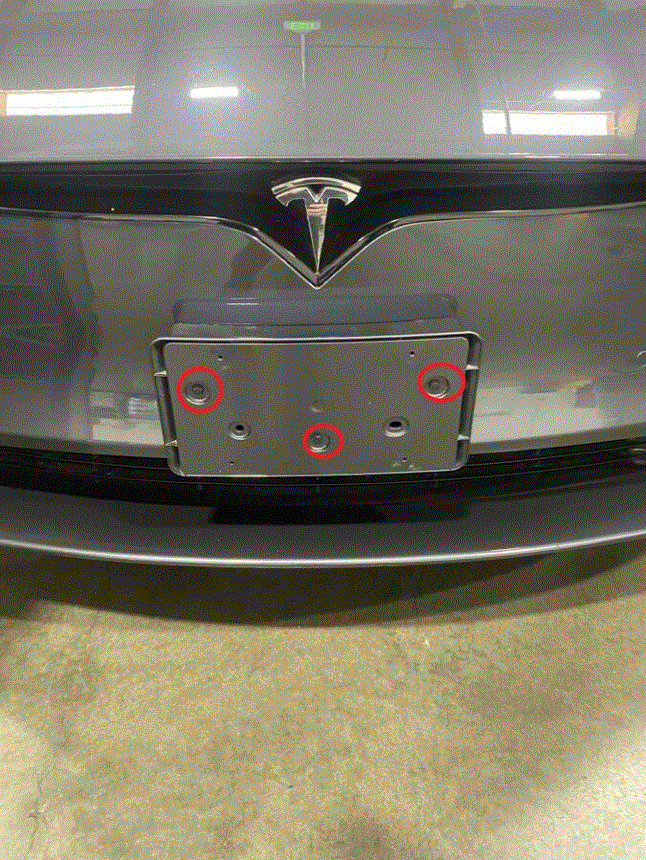

- Install the new front license plate molding painted bracket on the front fascia.NOTE: 3x Bolts, E10 5 Lobe, 1 Nm
- Install license plate with decorative frameNOTE: 4x Screws, T20, 3 Nm
