Fairing - Rocker Panel - Rear - LH - Remove And Replace: Install

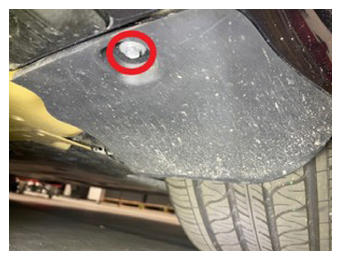

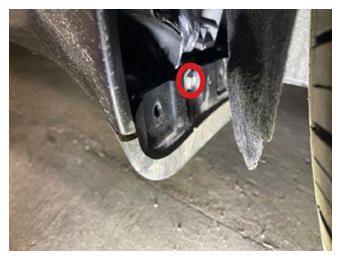

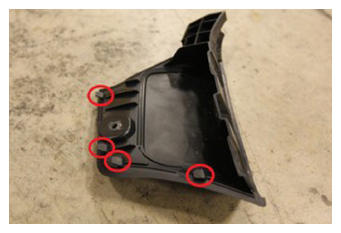

Secure the tabs (x5), and then install the bolts (x2) that attach the LH rear rocker panel fairing to the body.
2.85 N.m (2.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

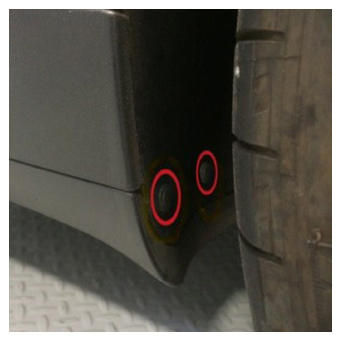

Install the lower push clips (x2) that attach the LH rocker panel to the rear wheel arch liner.

Courtesy of TESLA, INC.
