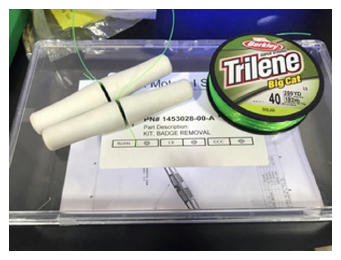

- Prepare the badge removal kit for usage.
NOTE:

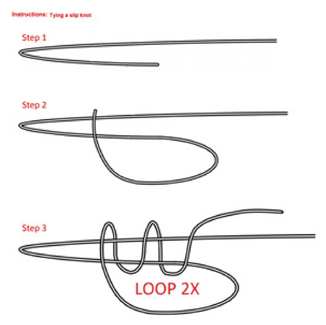

Cut the wire and tie slip knots onto both handles, and then prepare the kit for use. Follow tooling instructions as required.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

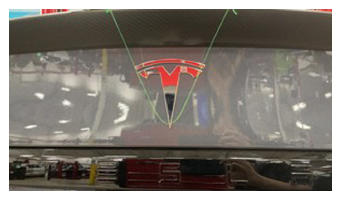

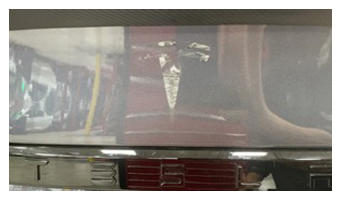

- Remove the rear Tesla badge from the trunk.
NOTE:
Recommend starting from the bottom and move upwards. Feed line back and forth to separate the Tesla badge from the surface.
 Courtesy of TESLA, INC.
|

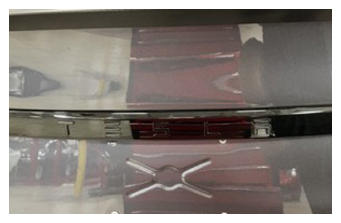

- Clean the old adhesive residue from the trunk lid.
NOTE:
Clean surface to allow for installation of the new Tesla badge.
NOTE:
Allow 1 minute for the Isopropyl Alcohol (IPA) to dry before continuing.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
