Plaid Graphic Badge - Remove And Replace: Install

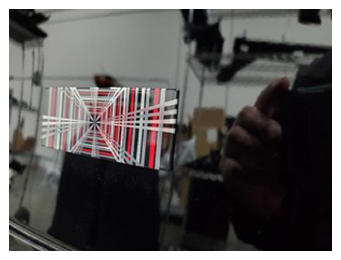

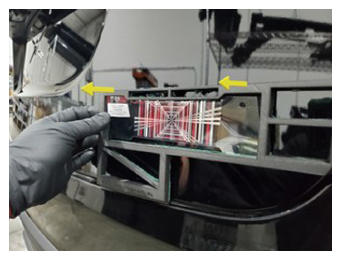

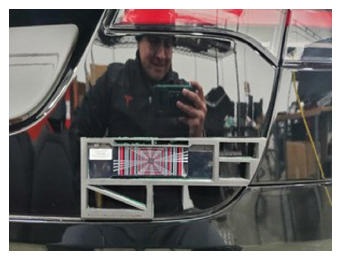

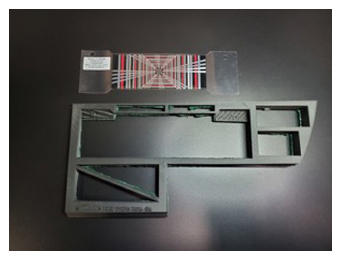

If necessary, install the new plaid graphic badge with film on the badge alignment tool, and then perform a dry fit check.

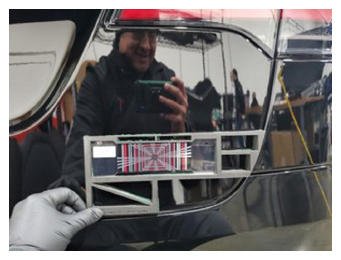

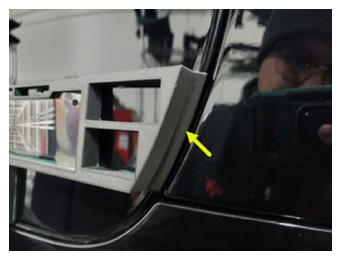

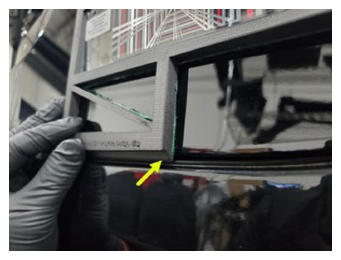

NOTE: The badge alignment tool will line up along the RH bottom corner of the liftgate.

Tip: Use of the following tool(s) is recommended:
- MS palladium plaid graphic badge jig - 1783447-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

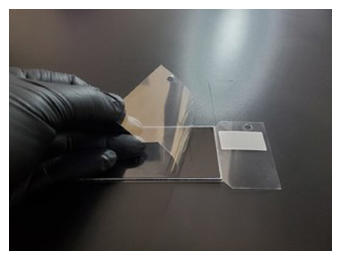

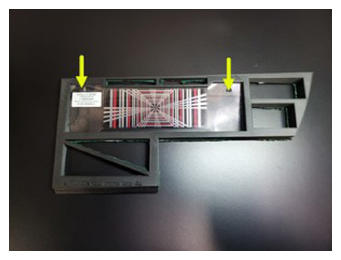

Peel off the adhesive backing film from the new plaid graphic badge, and then install the badge on the badge alignment tool.
Tip: Use of the following tool(s) is recommended:
- MS palladium plaid graphic badge jig - 1783447-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

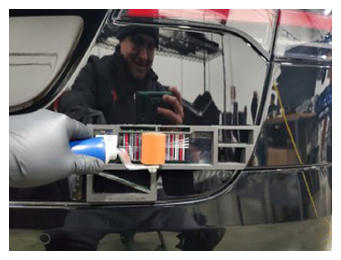

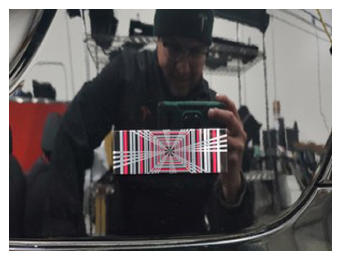

Install the new plaid graphic badge on the liftgate.
NOTE: Starting from the center and working outwards, use a seam roller to apply pressure and allow the badge to fully adhere to the liftgate.

Tip: Use of the following tool(s) is recommended:
- MS palladium plaid graphic badge jig - 1783447-00-A
- Seam roller - 1049517-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove the adhesive film and alignment tool from the plaid graphic badge.
Tip: Use of the following tool(s) is recommended:
- MS palladium plaid graphic badge jig - 1783447-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

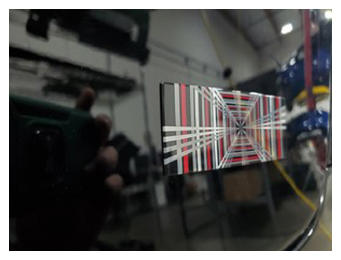

Visually inspect the plaid graphic badge and verify proper installation. Wipe away any contamination.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
